Overview

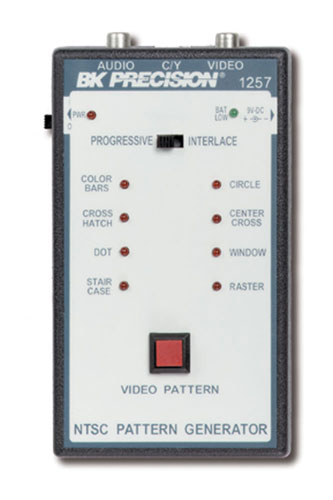

This handheld NTSC Pattern Generator is powered by a 9 volt battery or AC adapter providing NTSC color bars, crosshatch, dot, staircase, circle, center cross, windows, and a full range of color raster patterns. The outputs available are composite video via RCA connector, a Audio output RCA connector, or an S Video mini DIN output. Signals can be produced as an interlaced or progressive scanning mode. Note: the Composite Video output is not modulated.
- S Video, composite video, audio output
- Interlace or progressive scanning system
- 9VDC battery (included)
- AC adapter available
