BK1902
BK1902 BK1902 BK1902 BK1902

BK1902

1-60V 15A Switching DC Power Supply

The B&K Precision 1902 is a laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The 1902 provides a variable voltage

900
15
60
1
Analogue
DC
Value
60

Max. Power (W)

Max Current A

Max Voltage V

Number of Outputs

Interface

AC or DC Output

Classification

MAX VOLTAGE (V)

Add to compare

Documentation & Downloads

Overview

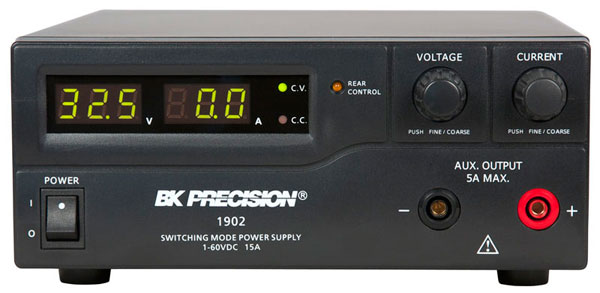

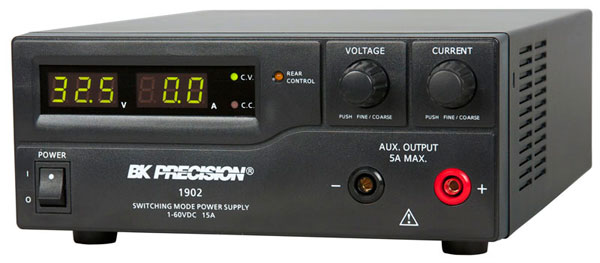

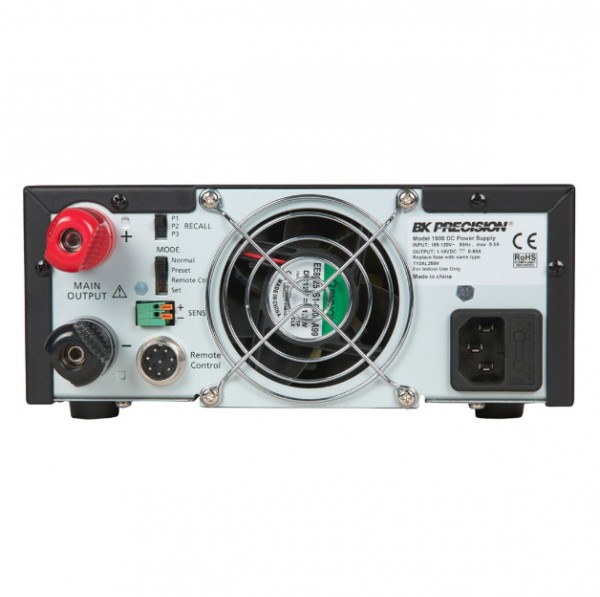

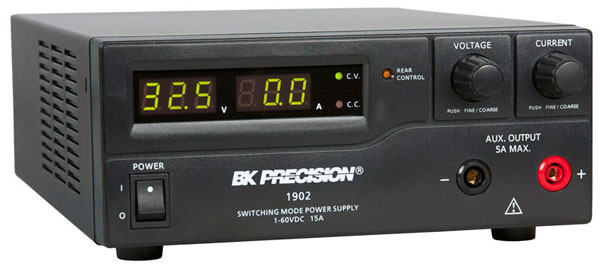

The B&K Precision 1902 is a laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The 1902 provides a variable voltage output from 1V to 60V at 15A continuous operation and makes setting voltage and current levels fast and precise through its dual action, coarse/fine rotary encoder control. In addition to its constant voltage (CV) and constant current (CC) modes, the high efficiency DC power supply offers a unique solution with its preset and remote control modes. Save up to three different presets of voltage and current values for quick recall. The remote control function allows the output power, voltage, and current to be adjusted without touching the front panel of the power supply. These features make the 1902 suitable for a wide range of applications including production testing, telecommunications.

  • This is the UK spec 220VAC version with UK power lead
  • Automatic CV/CC crossover operation
  • Lightweight and compact
  • Rotary encoder control for precise voltage and current setting
  • 3 user-defined voltage and current presets
  • Remote control function
  • Overvoltage, overtemperature, and overload protection
