BK2190D
BK2190D BK2190D BK2190D

BK2190D

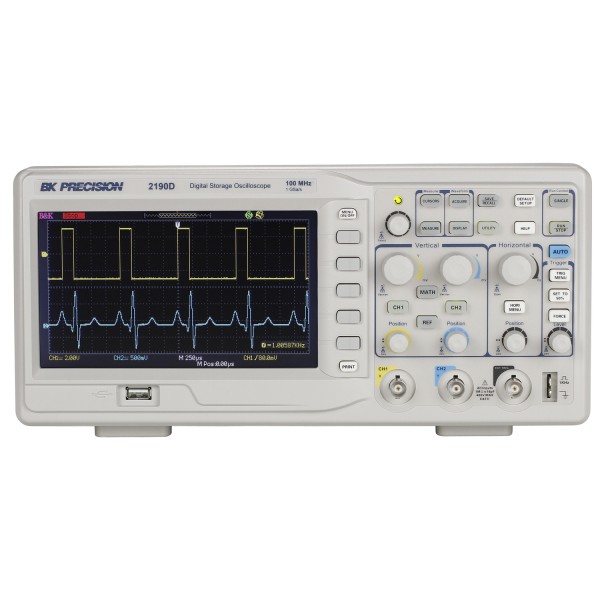

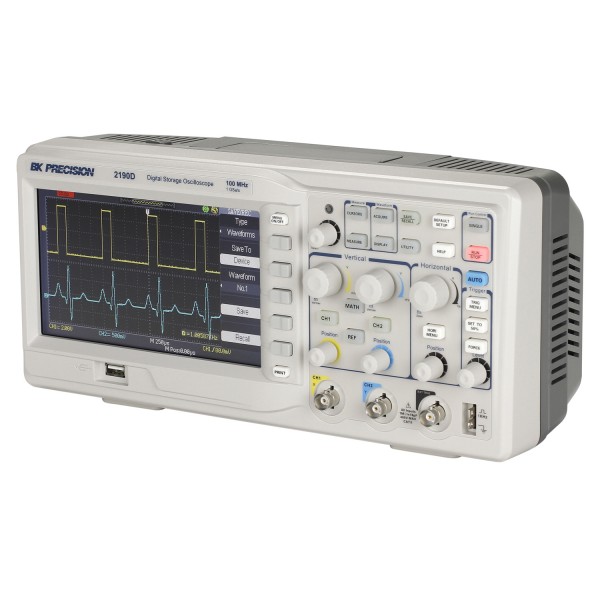

The B&K Precision 2190D digital storage
oscilloscope has a bandwidth capable
of capturing up to 100 MHz signals with a real time sampling rate of up to 1
GSa/s.

Categories: , Supplier:

The BK2190D has been discontinued. BK recommended replacement BK2190E

BK2190E

Documentation & Downloads

Overview

B&K Precision Model 2190D oscilloscope combines performance and value all in one portable solution. With advanced triggering capabilities, long waveform memory up to 40,000 points, and extensive features such as pass/fail limit testing, digital filtering, waveform recorder, and 32 automatic measurements, this oscilloscope offers powerful tools in a small affordable package.

  • 100 MHz bandwidth, 1 GSa/s sample rate
  • Large, 7″ widescreen color display offers a significantly larger viewing area than typical economy oscilloscopes (5.7″)
  • 32 automatic measurements
  • FFT plus four additional math functions
  • Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger
  • Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
  • 12 different language user interfaces and context sensitive help
  • Special EDU mode allows educators to disable Auto set button, Measure menu,and Cursors menu
  • PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
  • Front panel USB host port for saving and recalling waveform setups, data, and screen shots on a USB flash drive
  • USBTMC compliant USB device port supporting SCPI commands for remote PC control
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
