Overview

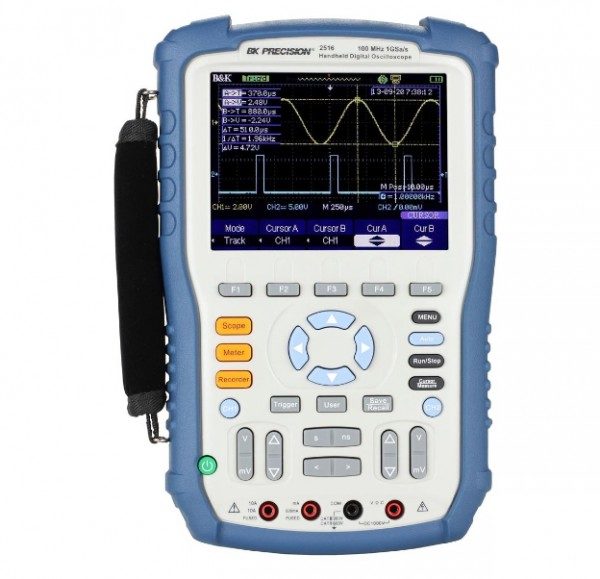

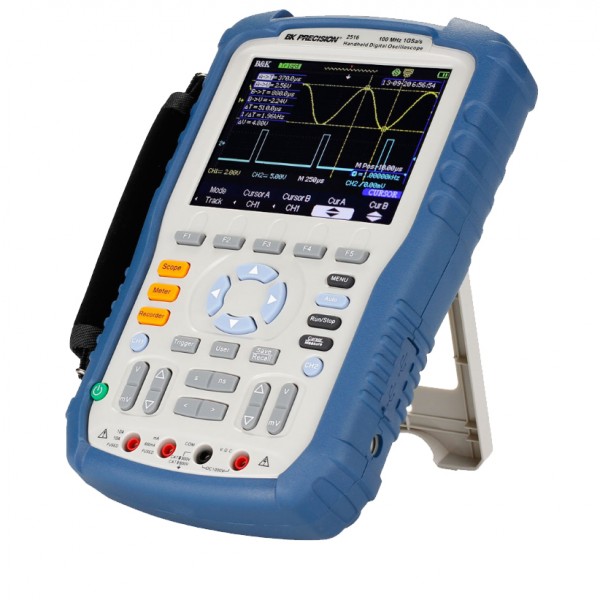

The B&K Precision 2516 handheld dual channel digital storage oscilloscope provides floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. This versatile 100 MHz bandwidth scope offers 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. The BK 2516 allows engineers and technicians to make accurate and safe measurements when the signal reference is floating.
- 100 MHz bandwidth
- 1 GSa/s sample rate
- 2 Isolated 600 V CAT III input channels
- 2 Mpts deep memory
- 32 automatic measurements
- FFT plus four additional math functions
- Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
- Dedicated current measurement terminals
- Recorder and trend plot functions to log data
- PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
- USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
- Standard mini-USB device port for remote PC control
| Model Guide | ||||
|---|---|---|---|---|
| Model | 2511 | 2512 | 2515 | 2516 |
| Bandwidth | NOT UK/EU
APPROVED |
NOT UK/EU
APPROVED |
60 MHz | 100 MHz |
| Channels | 2 isolated | 2 isolated | ||
| Safety Rating | 1000 V CAT II, 600 V CATIII | 1000 V CAT II, 600 V CATIII | ||
