BK2554
BK2554 BK2554

BK2554

BK Precision 2554 digital storage oscilloscope with 2 channels and bandwidth 100 MHz.

100
Digital
2
2 GSa/s
LAN & USB
Categories: , Supplier:

This product has been discontinued. We recommend the BK2565 as a suitable alternative.

BK2560 series

Documentation & Downloads

Overview

B&K Precision 2554 digital storage oscilloscope with 2-channels and bandwidth 100 MHz.

2 GSa/s sample rates, these oscilloscopes offer 24 kpts/Ch waveform memory, 32 automatic measurements, and advanced triggering capabilities including math functions. Engineered to allow you to see more of your signal under test, the 2550 series widescreen 7″ TFT display offers a significantly larger viewing area than typical economy oscilloscopes (5.7″).

  • Bandwidth 100 MHz
  • 2 GSa/s sample rate
  • 2-channel acquisition
  • Large 7″ widescreen color display
  • 32 automatic measurements
  • FFT plus four additional math functions
  • Built-in context sensitive help system
  • 50 Ohm input coupling
  • PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data

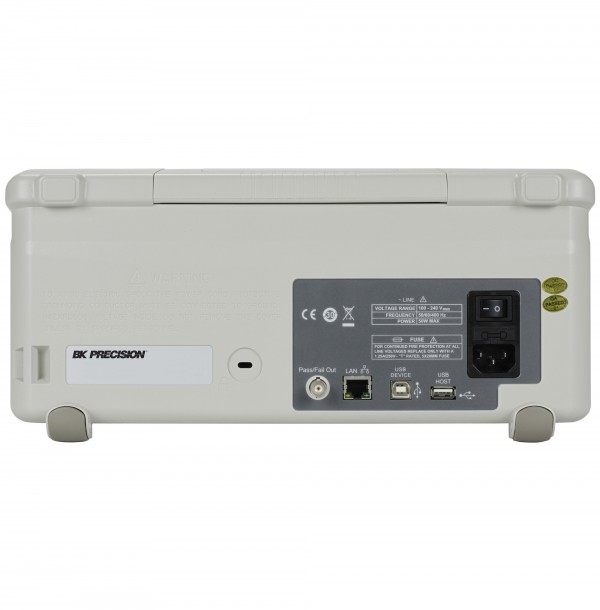

  • Front and rear panel USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
  • Standard LAN (supports SCPI) and USB device port (USBTMC compliant) for remote PC control
Model Guide
Model 2552 2553 2554 2555 2556 2557 2558 2559
Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz 300 MHz 300 MHz
Channels 2 4 2 4 2 4 2 4
