BK2563
BK2563 BK2568-MSO BK2560 Series BK2560_rear

BK2560 series

Digital Storage and Mixed Signal Oscilloscopes

The BK2560 Digital Storage and Mixed Signal Oscilloscope (MSO) Series delivers advanced features and debug capabilities for a wide range of applications.

Use the attributes to select the features you need for your application.

2 GSa/s

Channels

,

Sample Rate

Types

,

Bandwidth

, , ,

Clear
Add to compare
Categories: , Supplier:

Documentation and Downloads

Overview

The BK2560 Digital Storage and Mixed Signal Oscilloscope (MSO) Series delivers advanced features and debug capabilities for a wide range of applications.

With up to 300 MHz bandwidth in a 4-channel configuration, each model offers a maximum sample rate of 2 GSa/s, and a maximum memory depth of 140 Mpts.

In addition, these oscilloscopes provide an 8” colour display with 256 levels of colour grading combined with a high waveform update rate up to 140,000 wfms/s, which allows the instruments to capture infrequent glitches with excellent signal fidelity.

The MSO upgrade provides 16 additional digital channels, the Decode upgrade provides serial bus decoding for I2C, SPI, UART/RS232, CAN, and LIN protocols and the AWG upgrade enables the 25 MHz function /arbitrary waveform generator.

These digital oscilloscopes are ideal for applications in design and debugging, service and repair, and education.

Models of the BK2560 Series

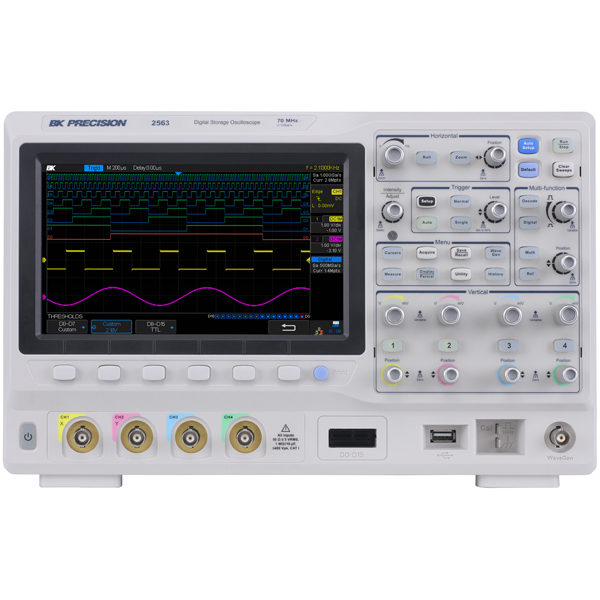

  • BK2563   70 MHz
  • BK2563-MSO  70 MHz
  • BK2565   100 MHz
  • BK2565-MSO  100 MHz
  • BK2566   200 MHz
  • BK2566-MSO  200 MHz
  • BK2567   200 MHz
  • BK2567-MSO  200 MHz
  • BK2568   300 MHz

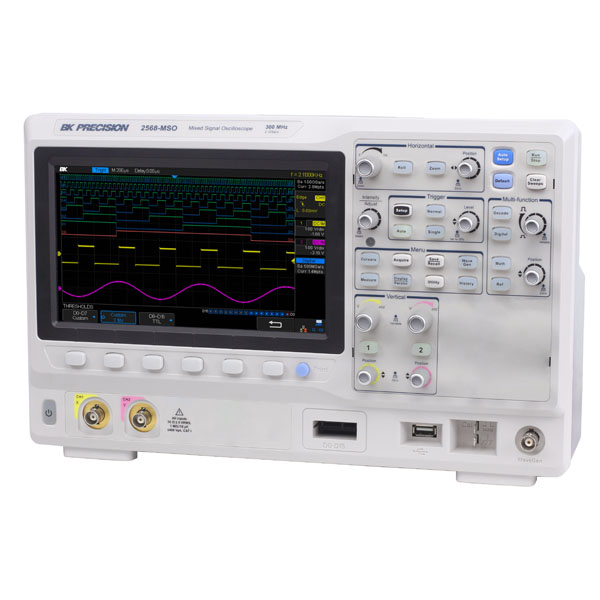

  • BK2568-MSO  300 MHz
  • BK2569   300 MHz
  • BK2569-MSO  300 MHz

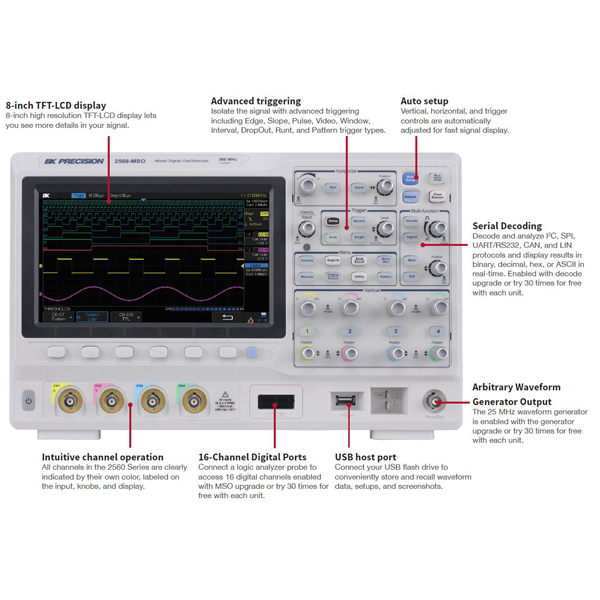

Features of the BK2560 Series

  • Large 8” widescreen display
  • Bandwidth up to 300MHz
  • 2GSa/s maximum sample rate
  • 140Mpts maximum record length
  • 16 digital channels with logic analyzer (MSOmodels)
  • Serial bus decoding supporting I2C, SPI, UART/RS232, CAN, and LIN protocols (Decode upgrade)
  • Built-in Function and Arbitrary Waveform Generator (AWG upgrade)
  • 140,000wfms/s maximum waveform capture rate
  • FFT including seven other math functions: Addition, Subtraction, Multiplication, Division,
  • Integration, Differential and Square Root
  • 36 automatic measurements

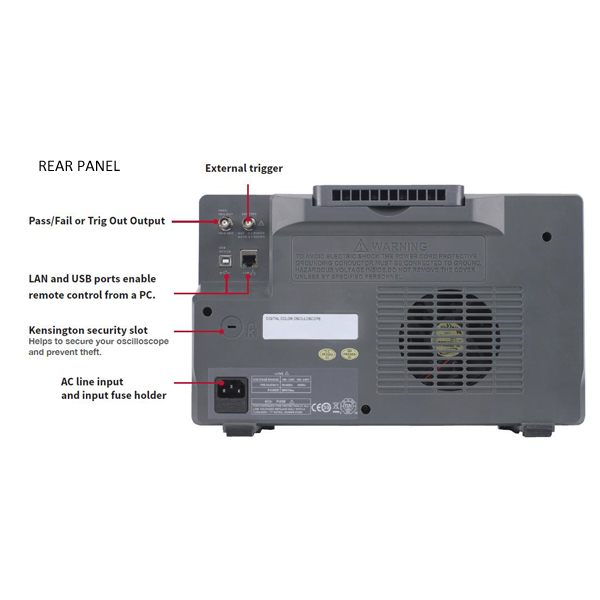

  • Standard LAN and USBTMC-compliant USB device port
  • 3 Year Warranty
