DDS Sweep Function Generator

BK4014B 12 MHz DDS Sweep Function Generator

£458.00 (£549.60 incl. VAT)

Types

Max Frequency (Hz)

Interface

In stock

Add to compare
Free next day delivery .
Categories: , Supplier:

Documentation & Downloads

Overview

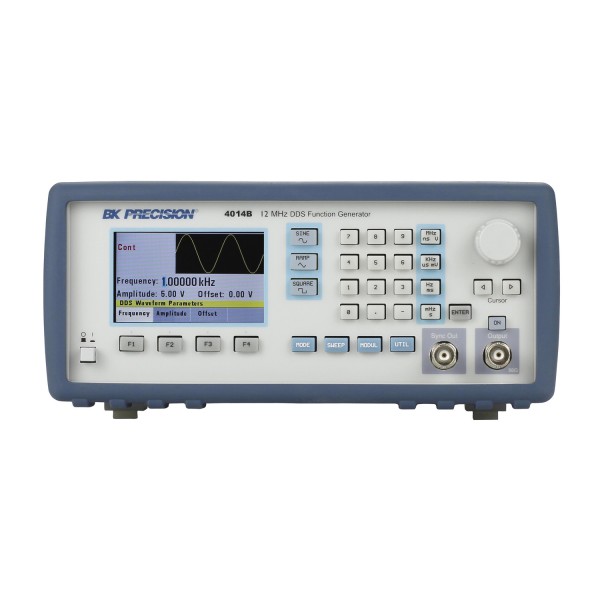

BK4014B 12 MHz DDS Sweep Function Generator

Sine and square frequency range 0.01 Hz – 12 MHz
Triangle/ramp frequency range 0.01 Hz – 1 MHz

B&K Precision Model 4014B is a versatile sweep function generator. The BK4014B is designed with a dual technology architecture combining direct digital synthesis (DDS) and a low-jitter square wave generator. This instrument generates sine, square, and triangle waveforms with high signal precision and stability.

The BK4014B provides variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

Features of the BK4014B

  • Sine, square, and triangle/ramp waveform generation
  • Bright color LCD display with waveform preview
  • Linear and logarithmic sweep
  • AM/FM modulation
  • Adjustable duty cycle
  • Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
  • Store and recall instrument settings
  • Output On/Off button
  • Internal/external triggering
  • Built-in counter
  • USB interface with SCPI-compliant command set
  • Short circuit and overvoltage protection on all inputs and outputs
