BK4065

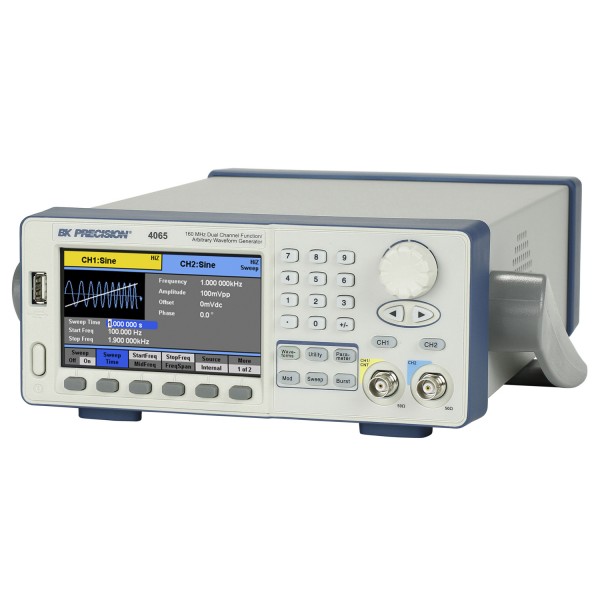

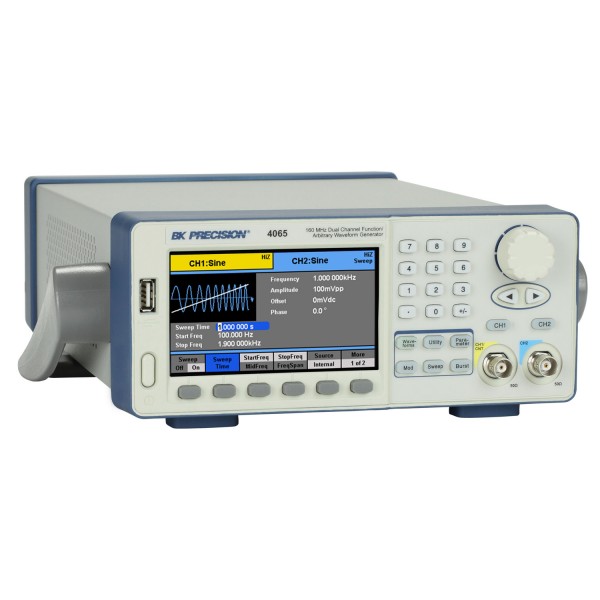

Dual Channel Function/Arbitrary Waveform Generator

The 4065 Dual Channel Function/Arbitrary Waveform Generator is capable of generating stable and precise sine, square, triangle, pulse and arbitrary waveforms.





Arbitrary Waveform Generator
160 MHz
500 MSa/s
USB GPIB

Types

Max Frequency (Hz)

Arb Sampling Rate

Interface

Add to compare

Documentation & Downloads

Overview

The 4065 Dual Channel Function/Arbitrary Waveform Generator is capable of generating stable and precise sine, square, triangle, pulse and arbitrary waveforms. With an easy-to-read colour display and intuitive user interface with numeric keypad,this instrument offers plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 500 MSa/s arbitrary waveform generator.

Features of the BK4065

  • 14-bit, 500 MSa/s, 512k point (Ch2 only) arbitrary waveform generator
  • Two independent channels with one-button synchronization
  • Generate sine waves up to 160 MHz
  • Generate square waves up to 50 MHz
  • Large 4.3-inch LCD colour display
  • Linear and logarithmic sweep
  • AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
  • Variable DC offset
  • Adjustable duty cycle
  • Internal/external triggering
  • Gate and burst mode
  • 36 built-in predefined arbitrary waveforms
  • Store/recall up to 10 instrument settings and
  • 32 user-defined arbitrary waveforms (8 x 512 kpts, 24 x 16 kpts)
  • Built-in counter
  • USB device port (USBTMC-compliant) and front panel USB host port
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
  • Arbitrary waveform editing software included
  • Short circuit output protection
  • LabVIEW™ drivers available
