Overview

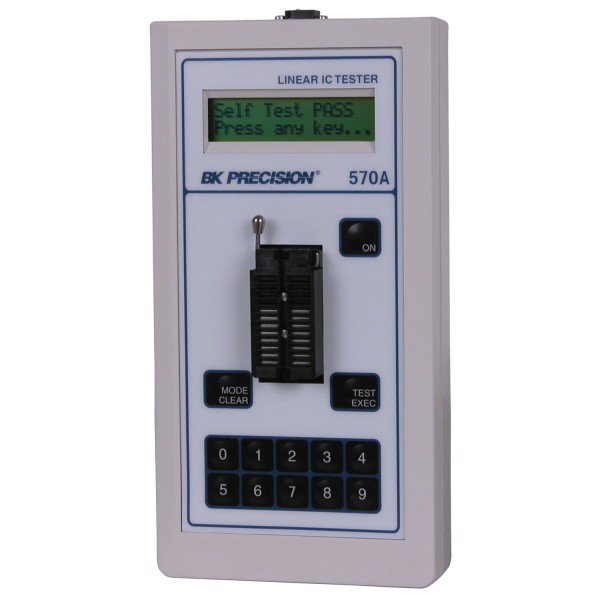

The Model 570A Analog IC Tester’s built-in test library includes all common Analog ICs including op-amps, comparators, voltage regulators, voltage references, analog switches & multiplexes, opto-isolators
Features:
- Auto identification mode
- Conditional/Unconditional loop testing mode
- Functional test unit emliates passive circuitry to implement a comprehensive test in a variety of configurations and gain settings
- Displays diagnostic information down to individual component pins
- Rugged, hand held, battery operated
- Built-in membrane keypad, 2 x 16 dot matrix alphanumeric LCD, and high quality 16 pin ZIF socket
- Battery operated
