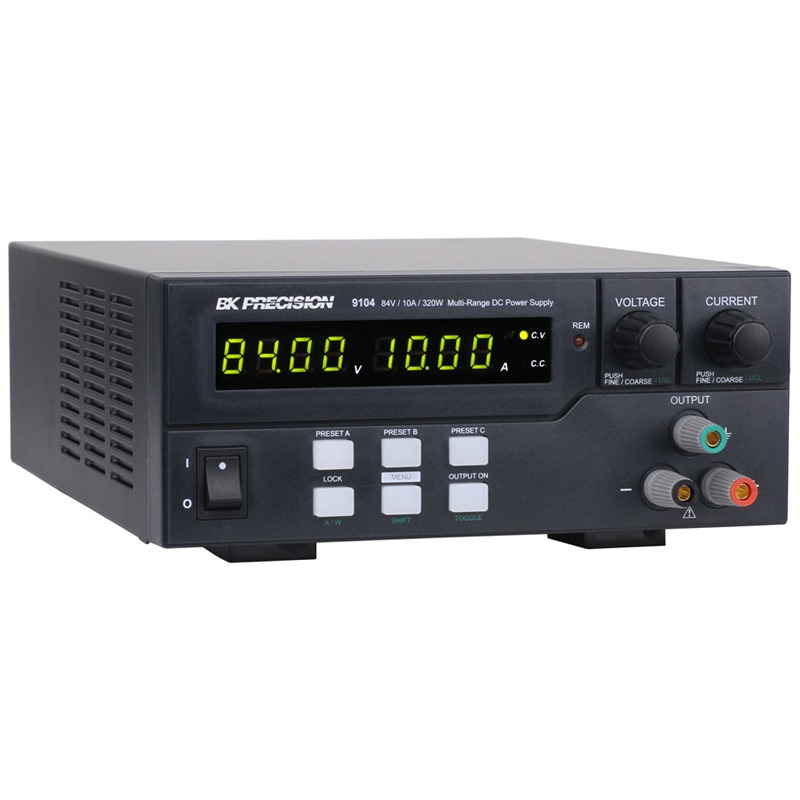

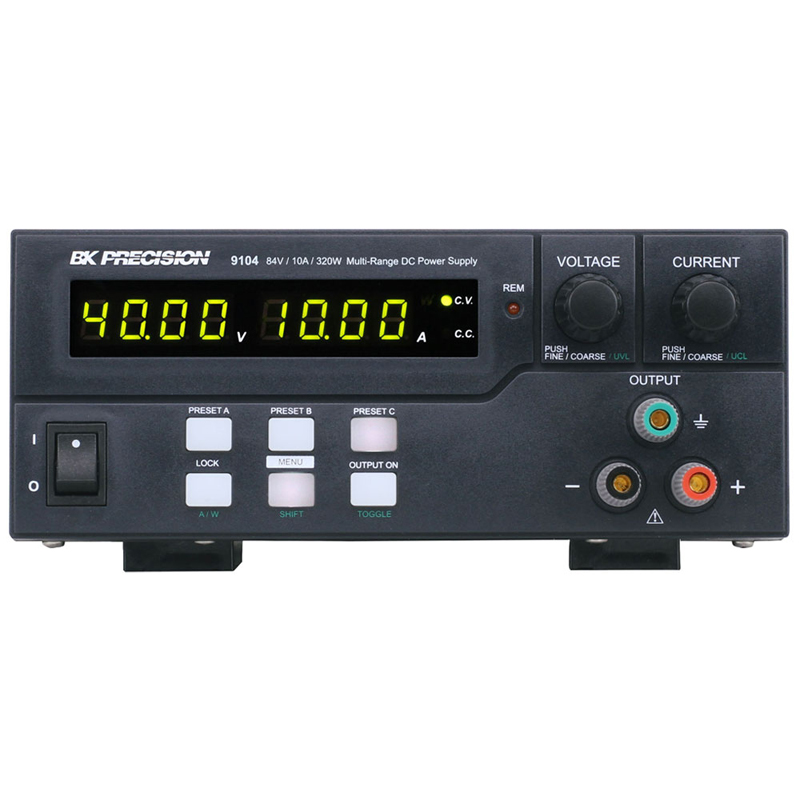

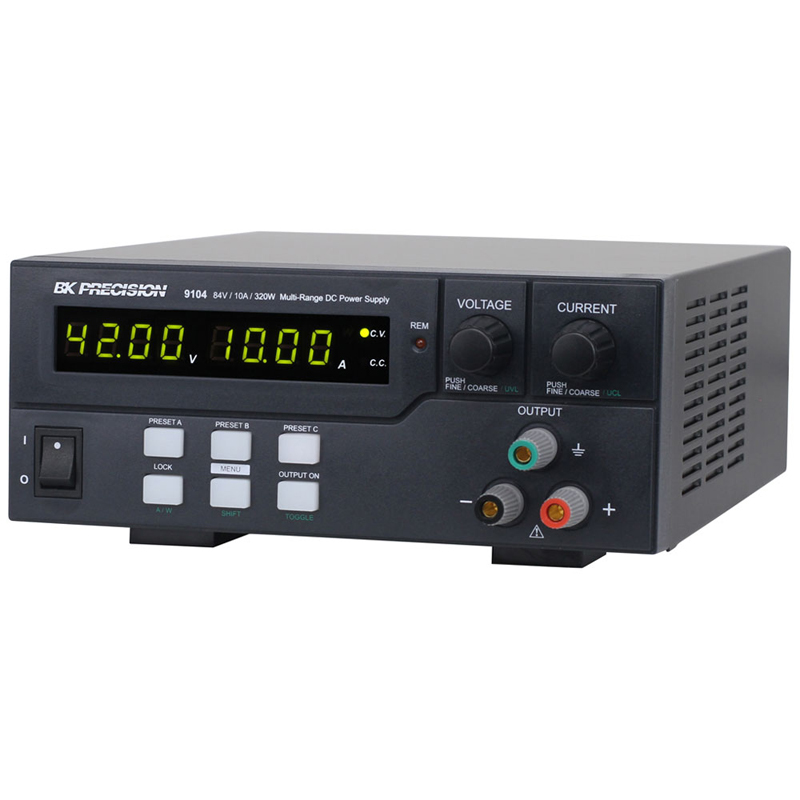

BK9103

320W Multi-Range DC Power Supply

Introducing the BK9103. A multi-range power supply that can replace several power supplies on your bench by offering extended operating areas.

320
20
42
USB
Multi
DC
Value

Max. Power (W)

Max Current A

Max Voltage V

Interface

Ranging

AC or DC Output

Classification

Add to compare

Documentation

Overview

Introducing the BK9103. A multi-range power supply from BK Precision that can replace several power supplies on your bench by offering extended operating areas.

B&K Precision announces the expansion of its multi-range DC power supply offering with the introduction of the new Models 9103 and 9104 Multi-Range DC Power Supplies. This relatively new generation of multi-range power supplies automatically recalculates voltage and current limits for each setting, providing 320 W output power in any voltage/current setting within the supply’s rated voltage and current limits. Additionally, the 9103 and 9104 include features such as auto cross-over for constant voltage (CV) and constant current (CC) operation, 3 voltage/current presets for frequently-used settings and transient operation as well as versatile remote control modes.

Protection features such as built-in OVP (overvoltage protection), OTP (overtemperature protection), and OLP (overload protection) circuitry ensure the safety of the DUT. The analog remote control function allows users to remotely control the power supply’s output voltage and current or to turn the output on/off. Both models feature a USB interface and include PC software for remote control and external timed programming.

Features of the BK9103

  • Max Voltage 42V
  • Max Output Current 20A
  • Max Output Power 320W
  • Automatic CV/CC crossover operation
  • Remote Sense
  • Save up to 3 user-defined voltage and current presets for quick recall
  • Transient mode for generating square, triangular or trapezium waveforms
  • PC software for remote control and external timed programming

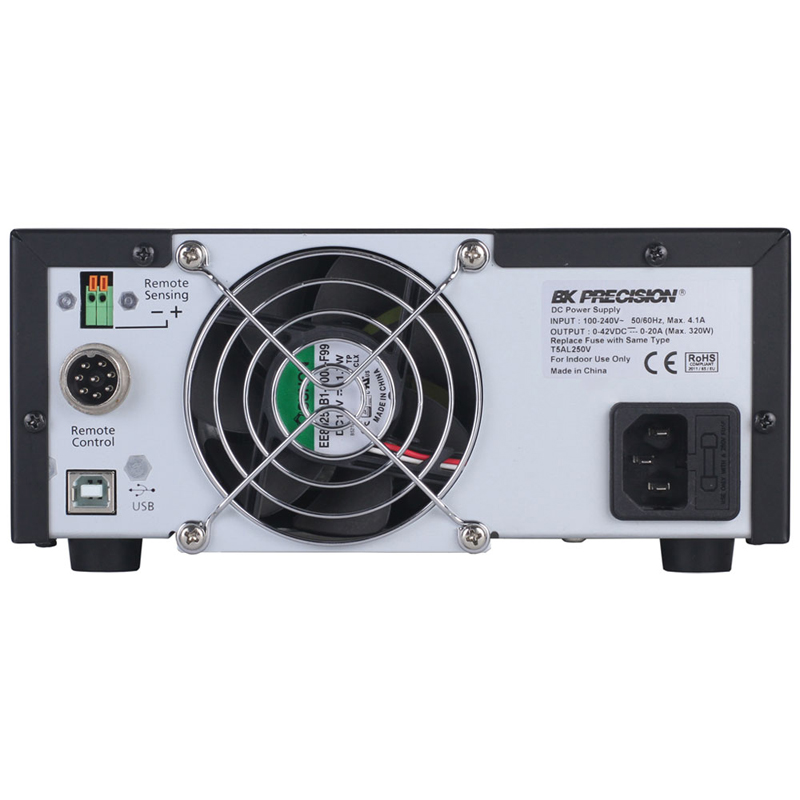

  • Analog remote control function and USB interface
  • Output on-off switch and control panel lock button for safer operation
  • Overvoltage and overcurrent protection
