BK9115
BK9115 BK9115 BK9115

BK9115

Programmable DC Power Supply

BK 9115 1200 W Multi-Range 80 V/60 A DC Power Supply

1200
60
80
1
GPIB RS232 RS485 USB
Multi
DC
Performance

Max. Power (W)

Max Current A

Max Voltage V

Number of Outputs

Interface

Ranging

AC or DC Output

Classification

Add to compare

Documentation & Downloads

Overview

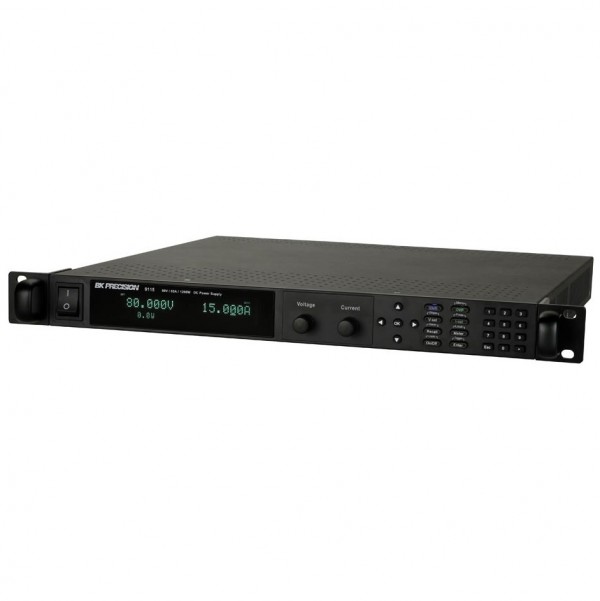

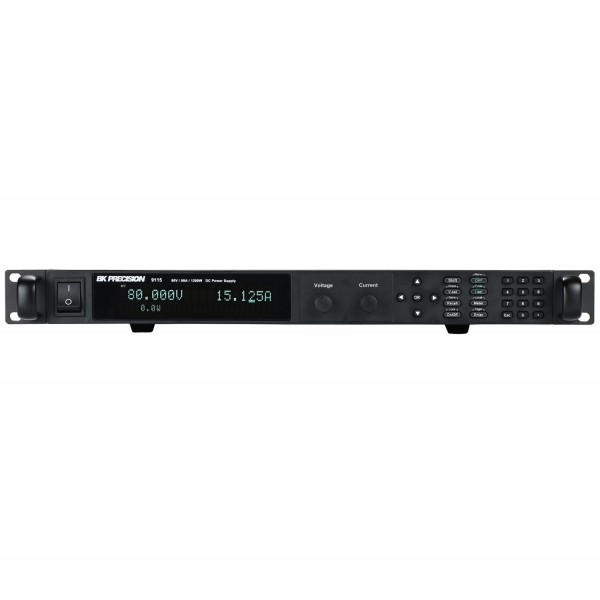

BK 9115 1200 W Multi-Range 80 V/60 A DC Power Supply.

The 9115 can replace multiple supplies on your bench or in your rack. Unlike conventional power supplies with fixed output ratings, the 9115 automatically recalculates voltage/current limits for each setting. The 9115 provides 1200W output power in any Volt/Amp combination within the rated voltage (80V) and current (60A) limits. By providing greatly expanded choices of maximum power Volt/Amp combinations, users can cut down on the number of power supplies required and free up valuable bench space.

  • This is the UK spec 220VAC version with UK power lead
  • Output up to 1200 W within 80 V/ 60 A rating
  • Compact, high density, 1U rackmount form factor
  • High programming and readback resolution of 1 mV/1 mA
  • Adjustable voltage rise and fall times
  • Sequence programming (list mode)
  • Store and Recall up to 100 instrument settings

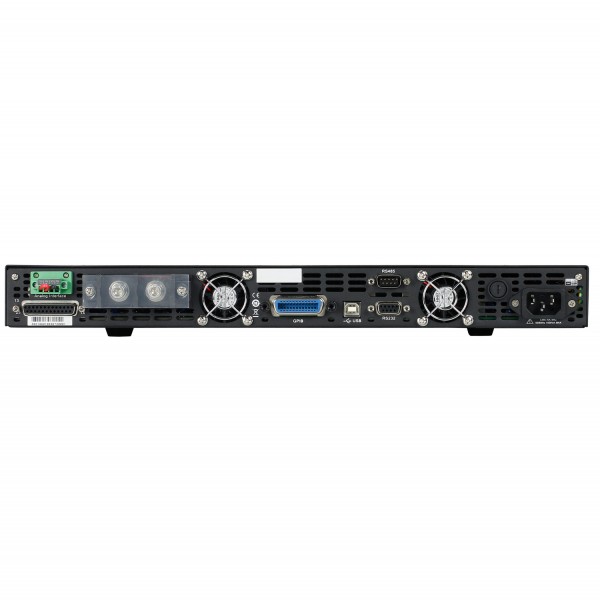

  • Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands for remote control
  • Analog interface with control and monitoring functions
  • Remote sense
  • Over voltage protection (OVP), overpower protection (OPP), over temperature protection (OTP), and key-lock function
