300W Modular load

The MDL Series is a multi-channel modular programmable electronic load system.

This is a single MDL302 load module only (requires mainframe).

45
300
Modular
80

Max Current A

Max. Power (W)

Types

Max Voltage V

Add to compare

Documentation & Downloads

Overview

The MDL Series is a multi-channel modular programmable electronic load system. Seven different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays.

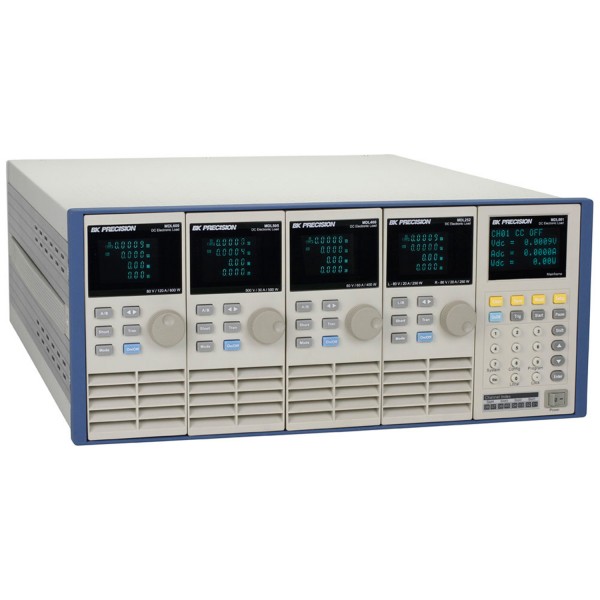

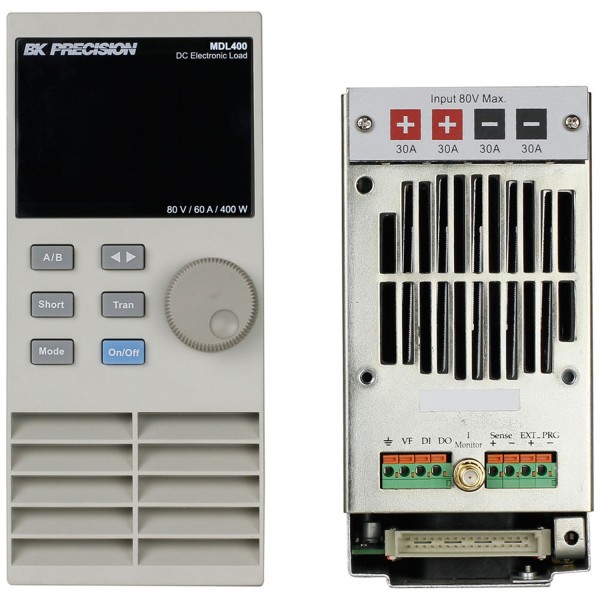

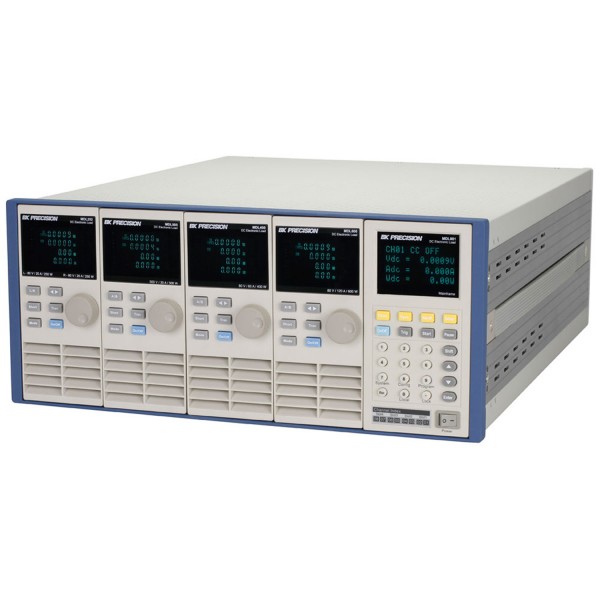

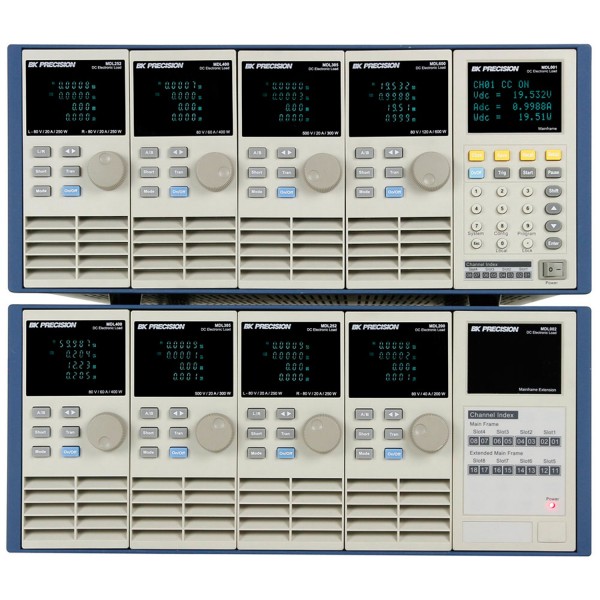

This item is a single MDL 302 load module only (requires MDL001 mainframe to operate)- the pictures show multiple load modules inside a MDL001 mainframe.

The MDL001 mainframe has four slots that can be configured with any assortment of the modules up to 2400 W (up to 4800 W with the mainframe extension MDL002). The high-performance electronic load modules of the MDL Series are capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) mode, which uses DSP technology to simulate non-linear loads and realistic loading behavior.

  • Modules offer wide voltage and current range, 0 to 500 V, 0 to 120 A
  • Support for up to 4 modules/8 channels or 8 modules/16 channels with mainframe extension
  • Transient mode up to 25 kHz
  • Synchronous Load on/off function
  • Adjustable slew rate in CC mode
  • Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
  • Short circuit test
  • Built-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)
  • Remote voltage sensing to compensate for the effect of voltage drop in wires
  • Operate identical modules in parallel mode for high current applications
  • OVP/OCP/OPP/OTP and reverse voltage protection



Mainframe

Mainframe Extension

Modules

Model

MDL

001

MDL

002

MDL

200

MDL

252

MDL

302

MDL

305

MDL

400

MDL

505

MDL

600

Power

up to 2400 W total

up to

2400 W total

200 W

250W*/

50 W

300W/300W

300W

400W

500W

600W

Voltage

n/a

n/a

80 V

80 V

80 V

500 V

80 V

500 V

80 V

Current

n/a

n/a

40 A

20 A

45 A

20 A

60 A

30 A

120 A

Inputs

n/a

n/a

1

2

2

1

1

1

1

*MDL252 is a dual-channel module supporting a unique flexible power configuration. The user can allocate 250 W to either channel up to 300 W total (e.g. 50 W/250 W, 250 W/50 W, 150 W/150 W).
