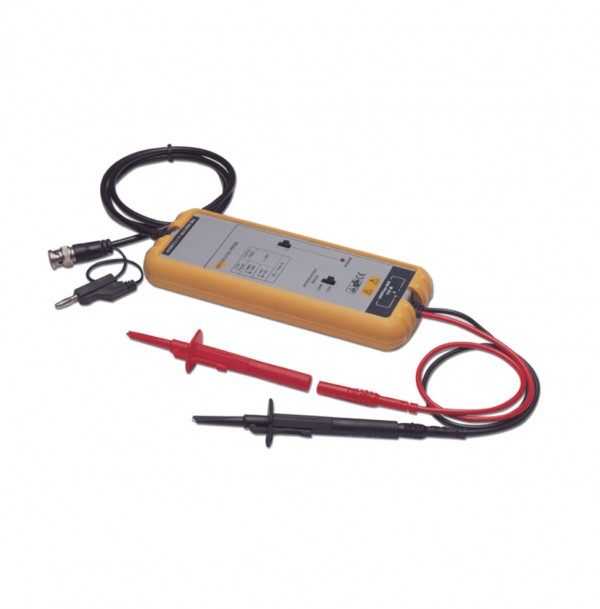

Active x100 x10 differential probe
25 MHz Active Differential Probe
General Purpose digital storage oscilloscope active differential probe with 10x and 100x attenuation ranges and voltage measurements up to ±700 V. Bandwidth to 25 MHz.
Powered by 4 AA batteries or optional 6 V DC mains adapter.
Applications include:
◦Switching power supply designs
◦Motor drive design
◦Electronic ballast design
◦CRT display design
Features:
◦Up to ±700 V differential and common mode
◦25 MHz bandwidth (-3 dB)
◦Safety certified
◦Accessories: Spring loaded hook probes, 4 AA batteries, rubber boot & manual
◦Reference SI-9001
