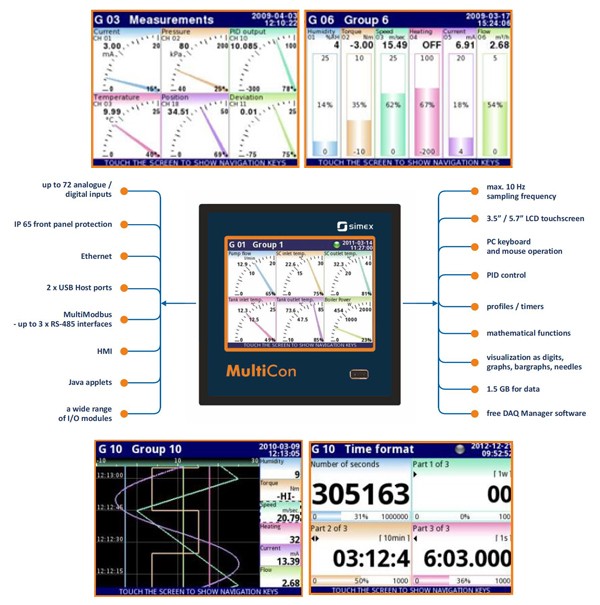

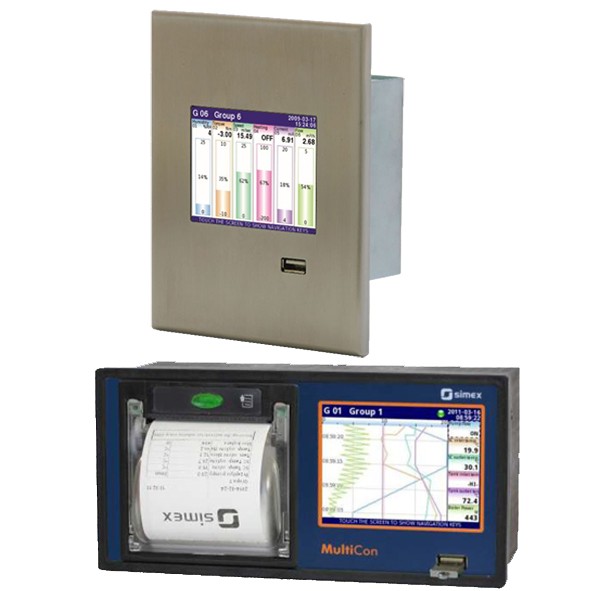

The CMC-99 Indicator/Controller/Recorder is equipped with a 3.5″ LCD touchscreen, up to 48 physical measurement or digital inputs and 60 virtual channels. Casing depth is only 100 mm.
The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive.
Although the MultiCon CMC-99 is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 27 available input/output modules.
- Power supply: 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
- Power consumption: typical 15 VA; max. 20 VA
- Outputs: 8 analog (4-20 mA) max.; 16 relay (1A/250V) max.; 4 relay 5A/250V max. or 48 SSR outputs, sensor supply: 24 V DC ± 5% (200 mA max. for current inputs)
- Display: 3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen

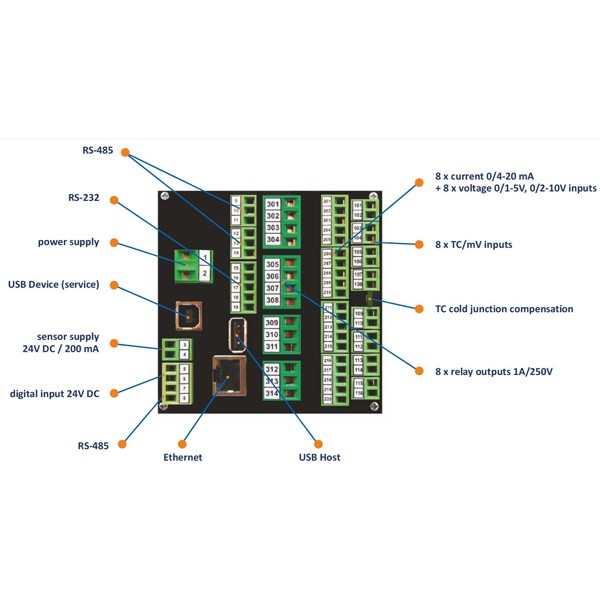

- Communication interface standard: RS-485 (Modbus RTU), 1 x USB Host; ETU version: 1 or 2 x USB Host, 1 x Ethernet 10 MB; enhanced ACM version: 2 x RS-485, 1 x RS-485/232, 1 or 2 x USB Host, 1 x Ethernet 10 MB
- Available data recording speed: from 0,1 s to 24 h with resolution 0,1 s
- Internal memory capacity: 1.5 GB
- Operating temperature: 0°C ± +50°C (optional -20°C ± +50°C with PCB conformal coating)
- Storage temperature -10°C ± +70°C (optional -20°C ± +70°C with PCB conformal coating)
- Case dimensions 96 x 96 x 100 mm
- Protection class: IP 65 (front), available options: additional frame IP 65 for panel cut-out sealing, transparent door STD-99; version with front USB: IP 40 or IP 54 (when fitted with STD-99 transparent door)
- Panel cut-out dimensions: 90,5 x 90,5 mm
