DAS 801

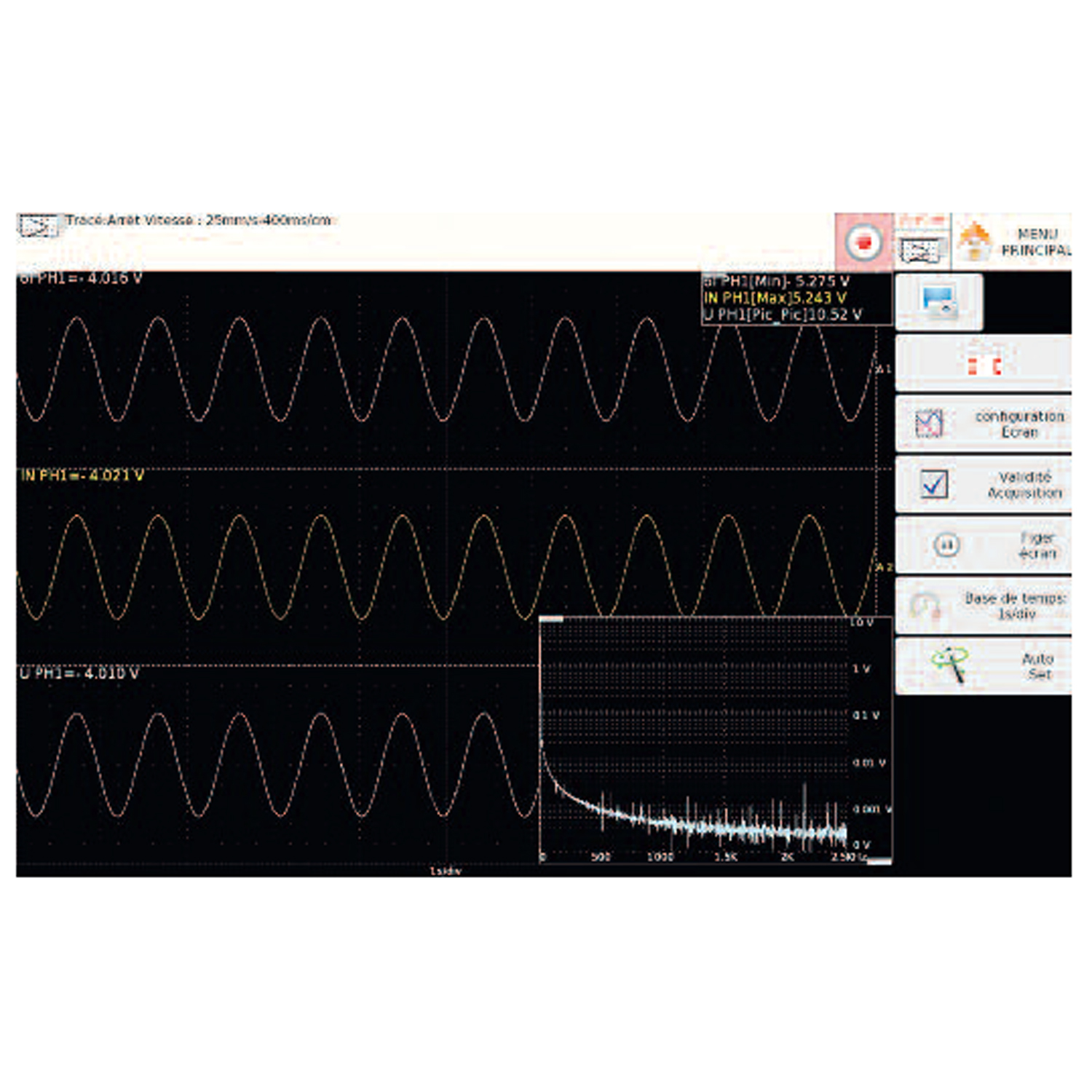

DAS 801 DAS801_Graphic

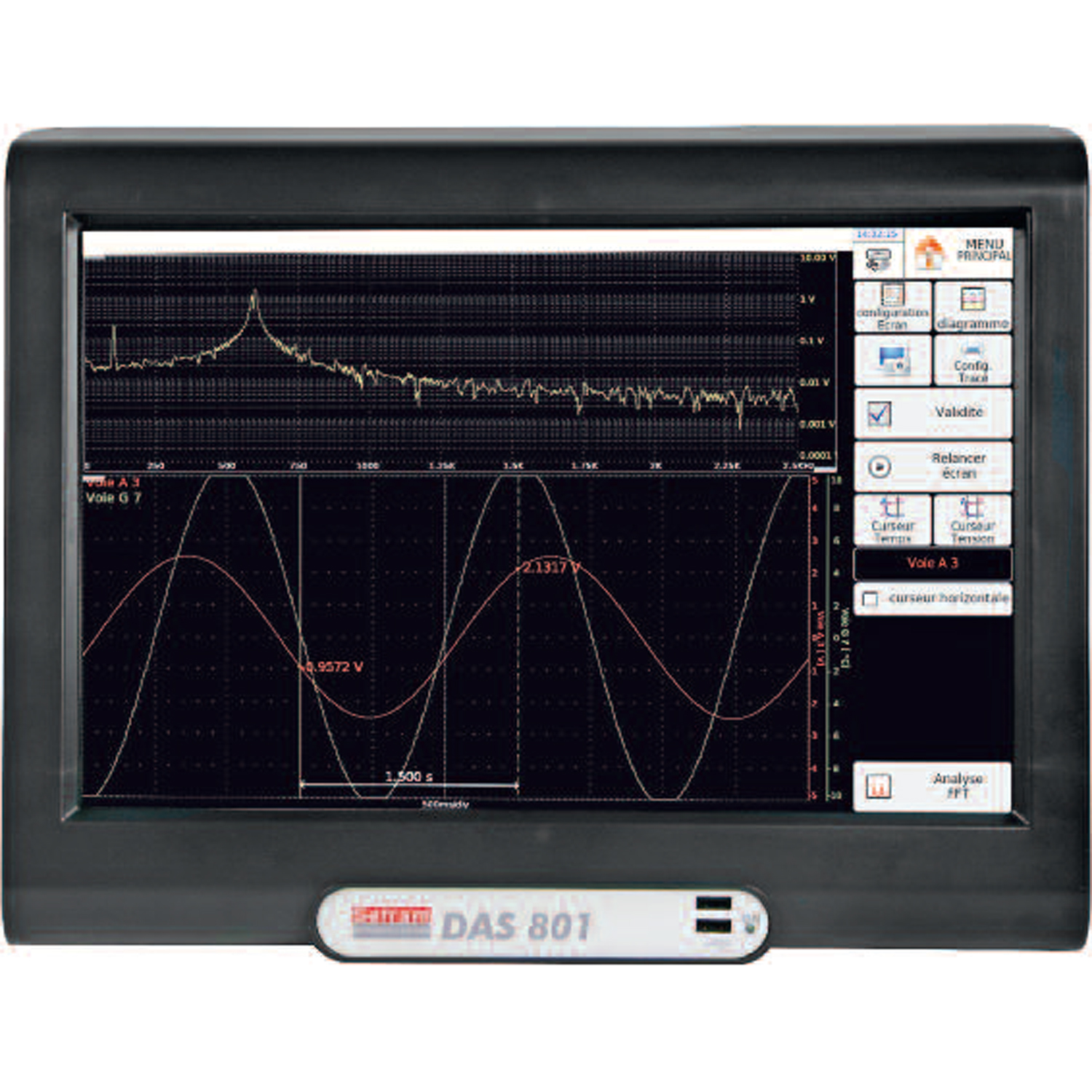

Sefram DAS 801

12 multiplexed channel handheld recorder

12 multiplexed channels paperless recorder with panoramic touch screen

1kHz
12
LAN & USB (WiFi option)
No
Optional

Maximum speed

Maximum input channels

Interface

Printer

Internal battery

Add to compare
Estimated Delivery 26th October - 2nd November
Categories: , Supplier:

Documentation & Downloads

Overview

The DAS 801 from Sefram¬†is a High Speed Data Recorder with 12 channels featuring a TFT panoramic LCD touch screen (15.4″).

Features of the DAS 801

  • 12 multiplexed analogue channels
  • 16 bit, 5ks/s, Bandwidth: 1kHz
  • DC, RMS AC+DC Voltage (+-50V)

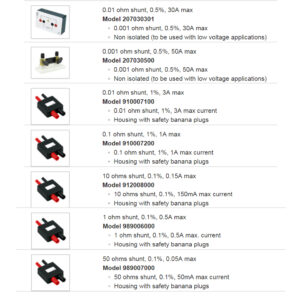

  • Current input via external shunts (optional extras)
  • Thermocouples, Pt100
  • 16 logical channels
  • 128 Mword memory, with segments
  • Internal hard disk : 500 Gb
  • Intuitive man-machine interface
  • Interfaces : 6 x USB, Ethernet, VGA
  • Various measurement functions
  • Remote control
  • Supplied with licence free Sefram Viewer software for data transfer and analysis

Options

  • WiFi interface
  • Internal battery
  • FlexPro software

Alternative: The Sefram DAS801SV is a version without a fan suitable for quiet or polluted environments.
