Overview

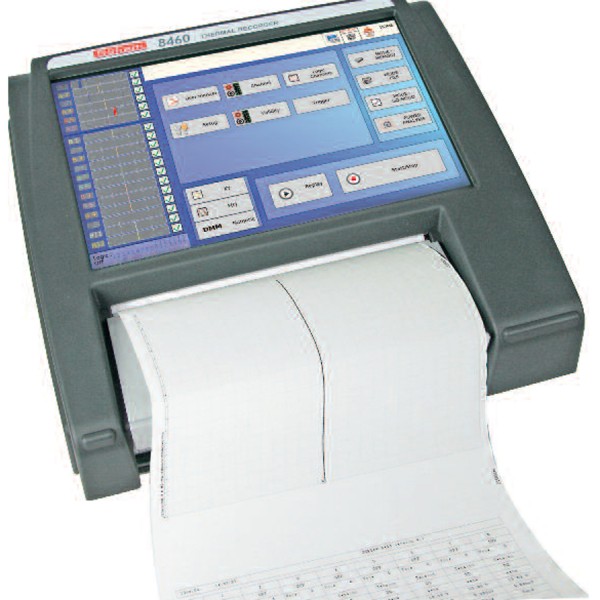

Sefram DAS 8460 high speed recorders with integral thermal paper printers offer up to 36 analogue inputs to cover all your applications – ideal to measure, record and analyse signals up to 100 kHz.
Features of the DAS 8460

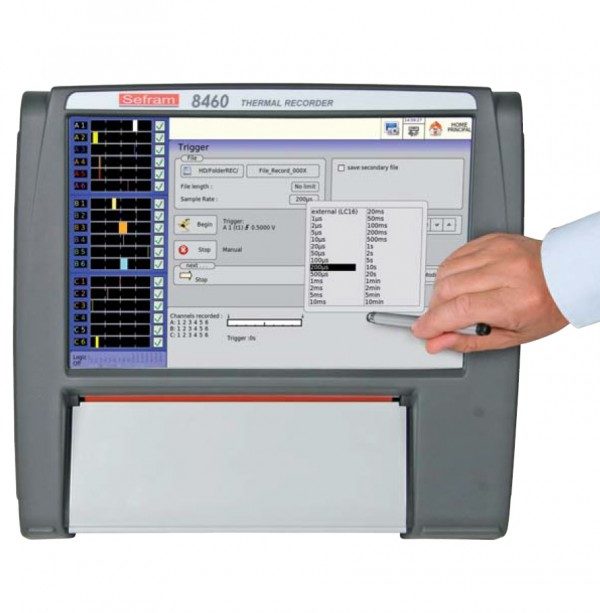

• TFT panoramic LCD touch screen (15.4″)
• 6 to 36 analogue channels
• Up to 3 measurement boards
• 16 logical channels
• 270mm thermal paper printer
• 128 Mword memory, with segments
• Internal hard disk : 500 Gb
• Power Analysis function (50Hz, 400Hz and 1kHz) – single and dual networks
• Interfaces : 6 x USB, Ethernet, VGA
• Remote control

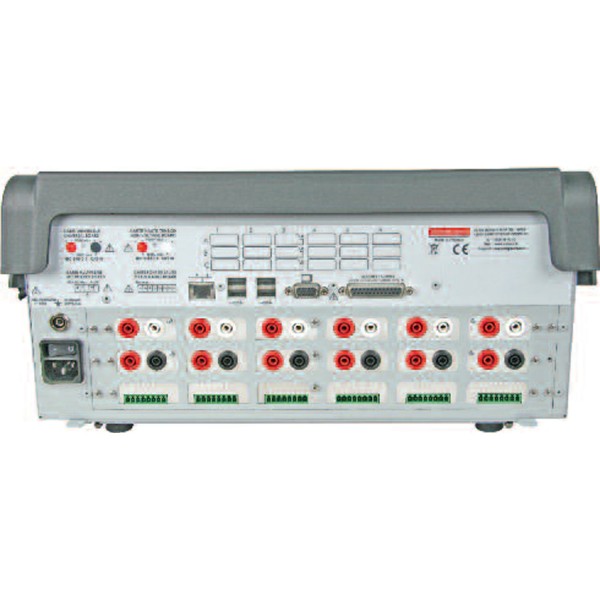

Input board choices:
6 isolated input universal board:
• 6 isolated analogue channels
• 14 bit, 1 Ms/s, Bandwidth: 100kHz
• DC, RMS AC+DC Voltage (+-500V)
• Current input via external shunts (optional extras)
• Frequency, Thermocouples
Also 6 isolated high voltage board
or
6 isolated differential input board – Strain Gauge
or
12 channels multiplexed board
Optional WiFi interface
