Overview

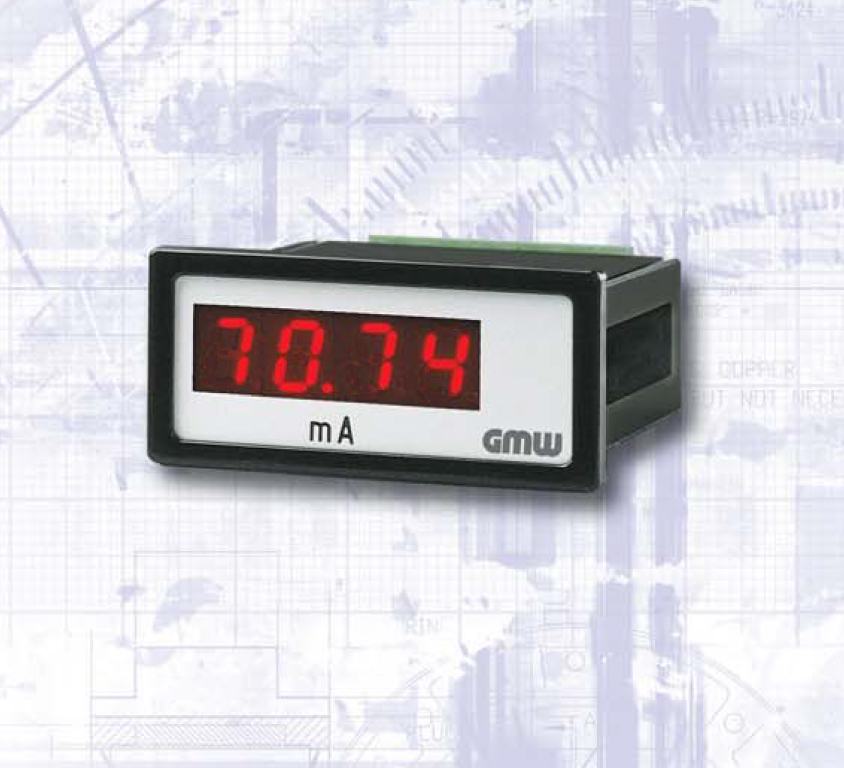

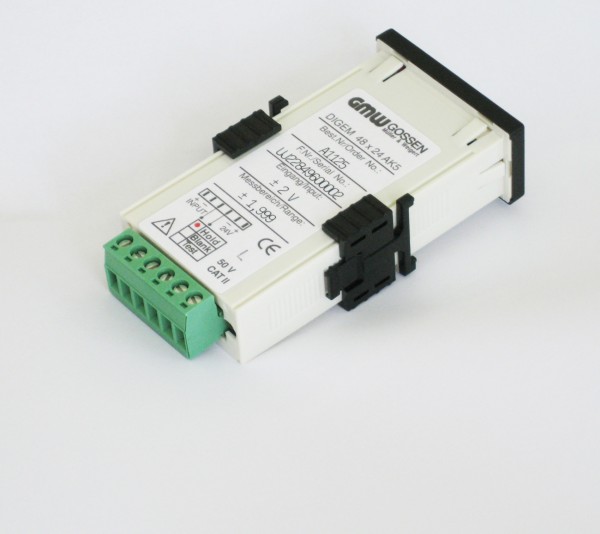

The GMW Digem 48×24 AK5 2V is a 3.5 digit digital panel indicator (A1125), 48x24mm, with 8mm digits for current or voltage input.
July 2022: Stocked versions: 4…20mA 0…100.0 (formerly RS 7116036) and +/-2VDC +/-1.999
Features of the Digem 48×24 AK5
- Type 7 Segment LED
- Display Colour red, optionally green
- Character Height approx. 8 mm
- Display Range – 1 999 … 1 999 (option: ± 19 990)
- Decimal Point fixed at factory
- Overflow Display “1 …”
- Available Measuring Ranges: (please email for options)
- Direct Voltage ± 200 mV to ± 50 V
- Direct Current ± 200 µA to ± 200 mA
- Power Supply 18 … 36 V DC 24 V AC 50 / 60 Hz
