Overview
The DIGEM A5 (A1155) is a 3.5 digit digital panel indicator, 62x38mm, with 14mm digits LED or LCD version
Display Type 7 Segment LED (red or green) or LCD (reflective or transflexive) with 14 mm character height (LED) or 12.7mm (LCD).
Available Measuring Ranges (email for details):
Direct Voltage ± 2 V to 200 V
Direct Current ± 200 µA to ± 200 mA
Auxiliary Power 5 V ± 5 %

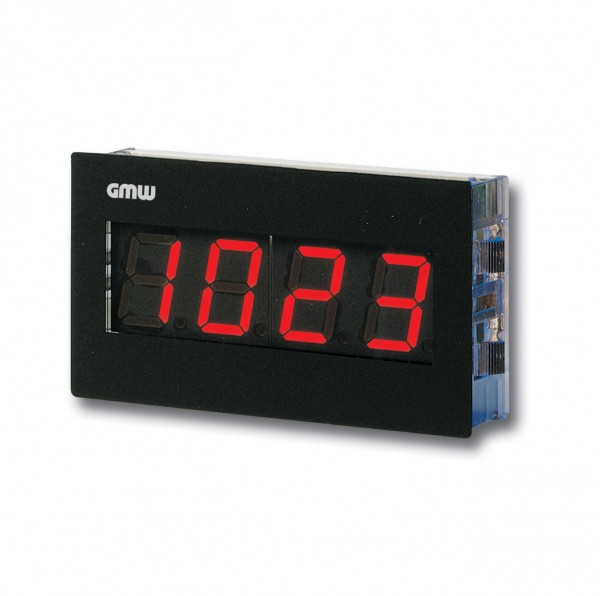

Main image shows red LED version.
Features of the Digem 62×38 A5 (A1155)
- 3.5 digits
- Case: 62x38mm
- Display: LED 7-Segment 14mm digit height (red or green) or LCD 12.7mm Digit Height (reflective or transflexive)
- Protection: Front panel: IP 50, Rear Panel: IP
- Installation snap mounting
- Terminals plug connector, appropriate plug is included with instrument
