Overview

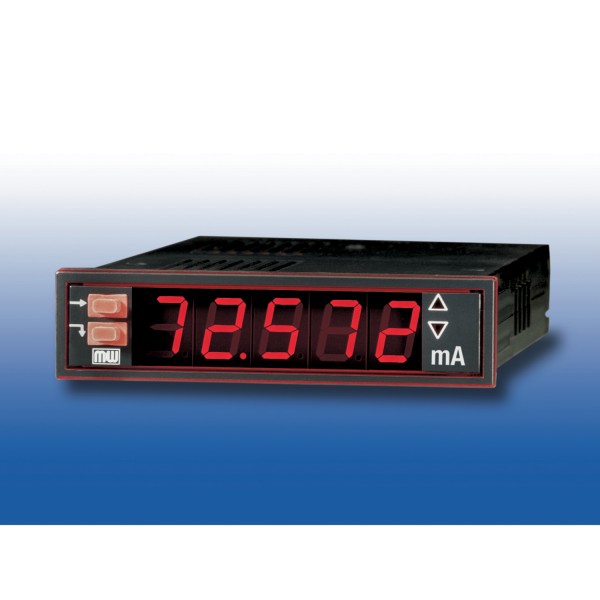

The DPM 24/40000 MF is an intelligent panel instrument for measurement of voltage, current and temperature.
The DPM 24/40000 MF incorporates all measuring ranges and functions for easy adjustment by the user via the front keys or the interfaces.
The measuring scale range allows input signals with a +/- 40,000 count resolution to be processed and displayed over a range from -19,999 to +99,999.
Custom unit-marking on the front panel (eg mA or m/s or %) is available as an option.
The microcontroller integrated in the DPM 24/40000MF offers many powerful functions, including:
- Datalogging
- integral linearization of 10 thermocouple types,
- 4 alarms
- comprehensive communication facilities, eg. to cascade several DPMs or to connect a printer, text display, personal computer or PLC
A standard version of this model has also been stocked by RS Components as RS article 312325 (312 325)
