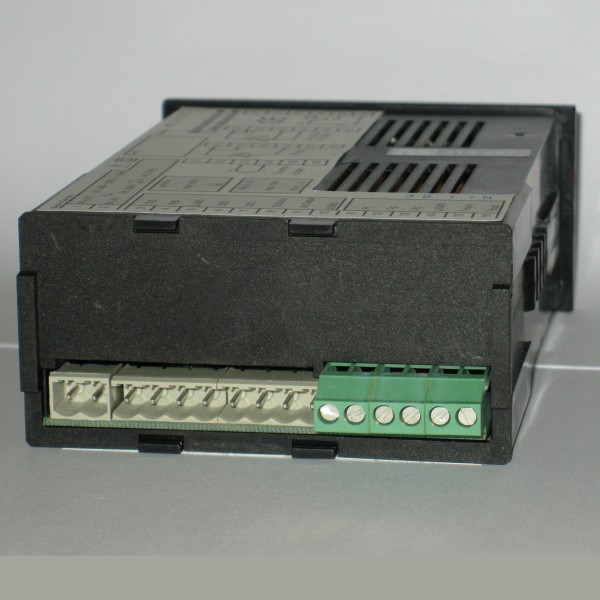

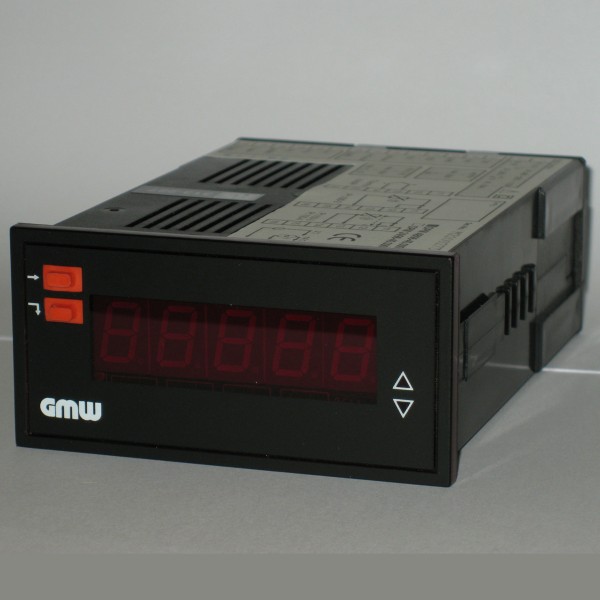

DPM 48/40000MF 5 digit Digital Panel Meter 48mm x 96mm
Features of the DPM 48/40000MF
A/D conversion range -19999 to +40000
Display range -19999 to +99999, free scalable
Display of direct measured, internally scaled value or values from the interface
Display memory Min., Max. or display HOLD value
Decimal point position programmable
Negative display indication „-” (to -19999)
Digit height 14 mm / 7-segment digits
Overload indication programmable, flashing
LED indicators 2 programmable LED (trend or alarms)
Power supply
Direct voltage 19 … 36 V DC 3 W approx.
or 19 … 36 V DC and 115 / 230 V AC 8 W approx
Inputs
DC Voltage, AC Voltage, DC Current, AC Current, Temperature
