Overview

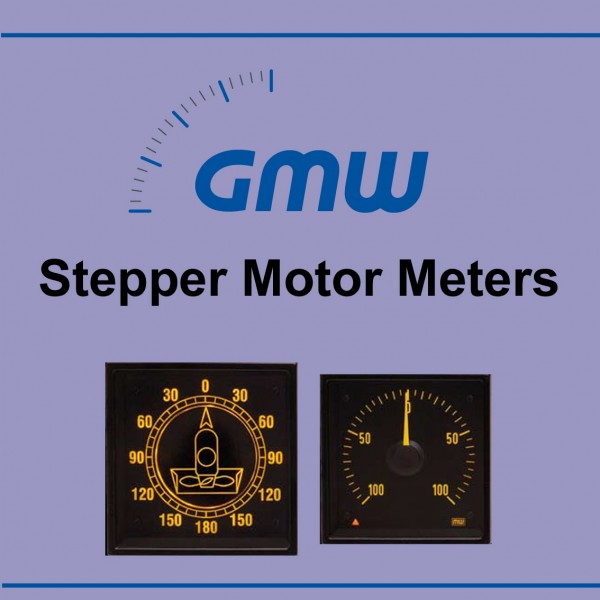

Stepper motor meters from the renowned analogue panel meter range from GMW (formerly Gossen, Mueller and Weigert).
Stepper motor analogue panel meters provide all the ease of reading of moving coil meters but with enhanced vibration resistance for vehicle and marine applications.
This section covers square format stepper motor powered meters only, including:
Inputs: 0-20 mA, 4-20 mA, ± 20 mA, 0-10 V, ±10 V DC
Customisable front panel – colour, marking, graphics
From 72mm x 72mm to 144mm x 144mm
360° or 270°
With optional input to turn meter 180° (for marine thruster reverse or other applications)
Models:
SM 72 – 270°
SM 96 – 270°
SM 144 – 270°
SM 72 – 360°
SM 96 – 360°
SM 144 – 360°
