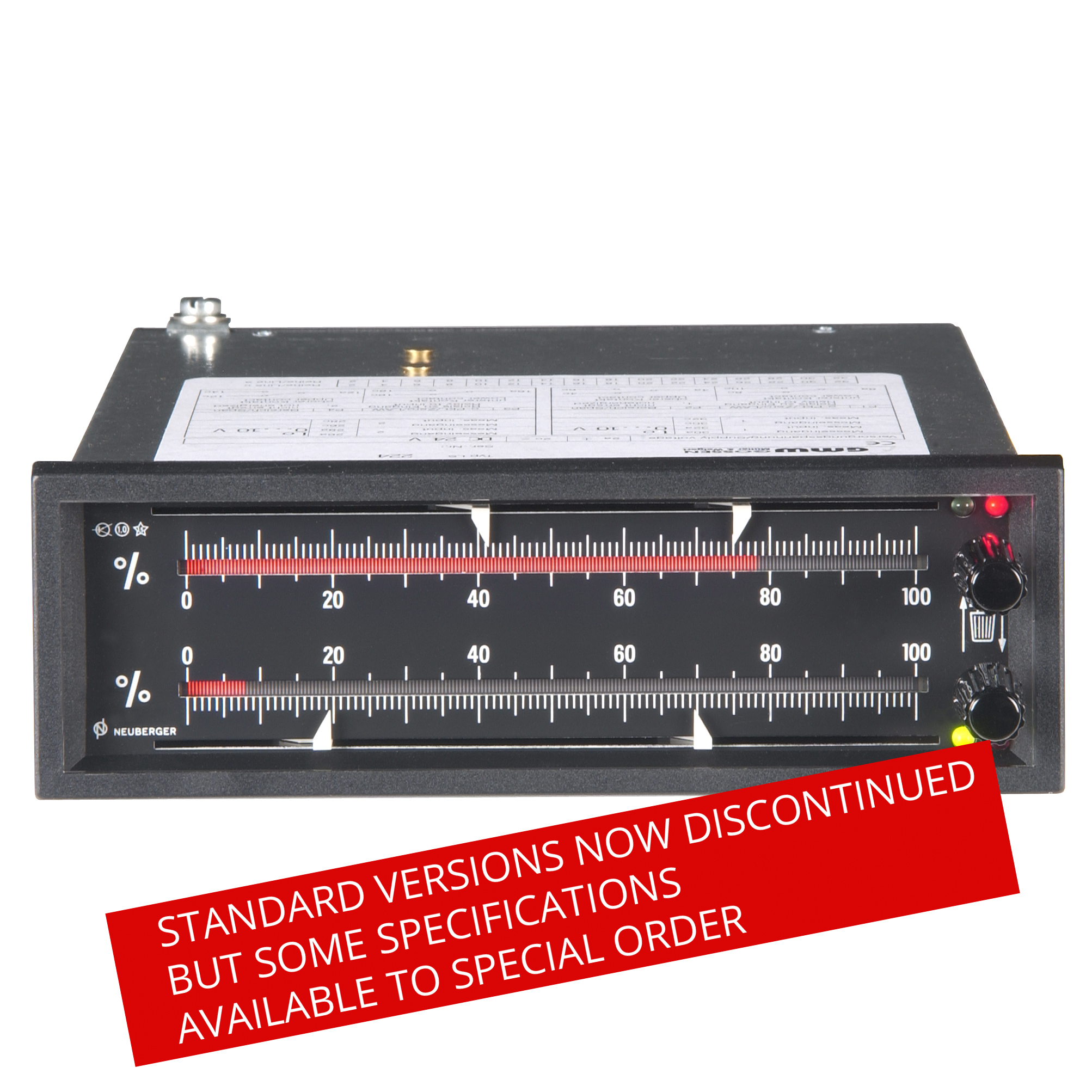

LS200_Horiz_V1

LS200 Bar graph

LS200 144x48 bargraph

Bar graph indicator/controller 144mm x 48mm – versions LS210, LS212, LS220, LS224

144 x 48mm
1
2
4
100
None

Dimensions

Channels

,

Max Relays

Bar length (mm)

Digital Display

Add to compare

Documentation & Downloads

Overview

LS200 series from GMW including the LS210, LS212, LS220 and LS240.

Bar graph indicator/controller 144mm x 48mm – as of 2018, standard versions are now discontinued but special versions of LS210 and LS220 are still available to order – email for information.

LED bar graph indicator 144mm x 48mm

Single input controller without relay output (LS210) or 2 relay outputs (LS212)

Or dual input indicator without relays (LS220)

Or dual input indicator with 4 relays (LS224)



Vertical or Horizontal installation

0-100% or fully customisable scale

Inputs: DC Voltage, DC Current, AC Voltage, AC Current, Temperature, Resistance, Frequency

Special versions have been re-engineered for Metrix as LED bargraphs (original vacuum fluorescent displays are no longer manufactured).

The re-engineered new bargraphs are 144x48mm, microprocessor operation, LED not VFD and have screw terminals without vibration‚Äźrelieving plug.

Email us with your requirements – development charges may apply and minimum order quantities.

Order ref: LS200 versions LS210 LS212 LS220 LS224
