MITEX Alphanumeric Panel-Mount VFC Display with Profibus DP Interface

MITEX FI VFC 2×40

The MITEX FI VFC 2×40 is an alphanumeric Panel-Mount VFC Display with Profibus DP Interface.

Display type

Vacuum fluorescent

Character Height

5.05mm

Number of Digits

2 lines of 40

Display Colour

Cyan

Operating Voltage

24VDC

Interface

Profibus DP

IP Rating

IP65

Environment

Outdoor

Environment

Factory

This product has been discontinued.

Documentation & Downloads

Manual

GSD File

Overview

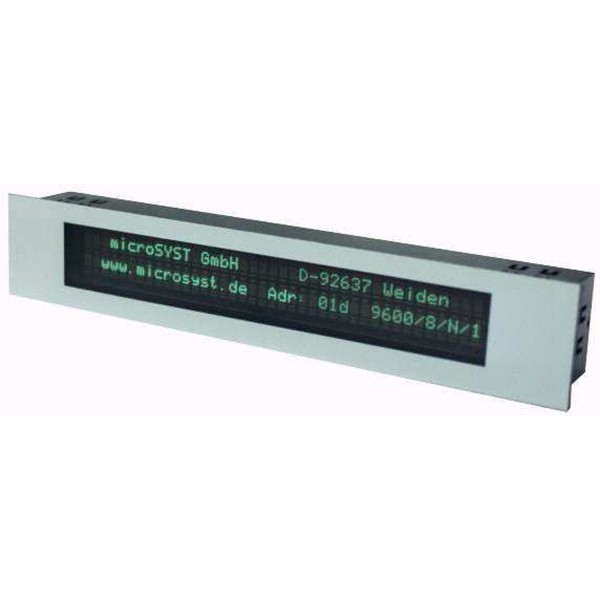

This bus compatible VFC monitor with Profibus DP interface has been designed as a panel mount display for industrial applications.

The monitor consists of a vacuum fluorescent display and can display two lines of text with 40 characters each. Each character is displayed with a resolution of 5 x 7 pixels resulting in a character height of 5.05 mm (0.2 inches).

A physical RS 485 interface with Profibus DP protocol is used for serial communication.
Predefined text strings can be downloaded and saved to the display via the RS232 interface.

Features of the MITEX VFC FI Monitor

Profibus DP interface
Text downloads via RS 232
Text memory (up to 255 texts with 80 characters each)
Metal DIN panel mount housing with special surface finish
Designed for use in industrial applications

Part No: KPB1VF2-FI251863-001
