Overview

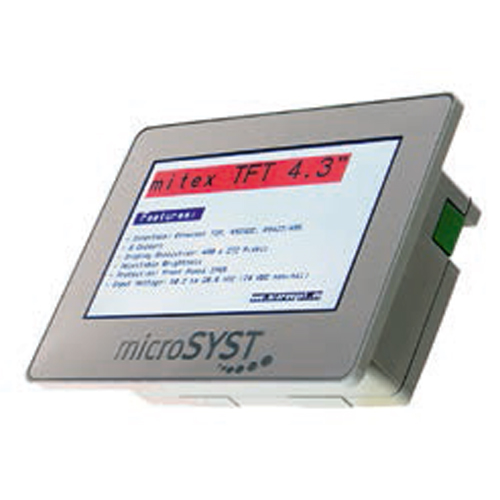

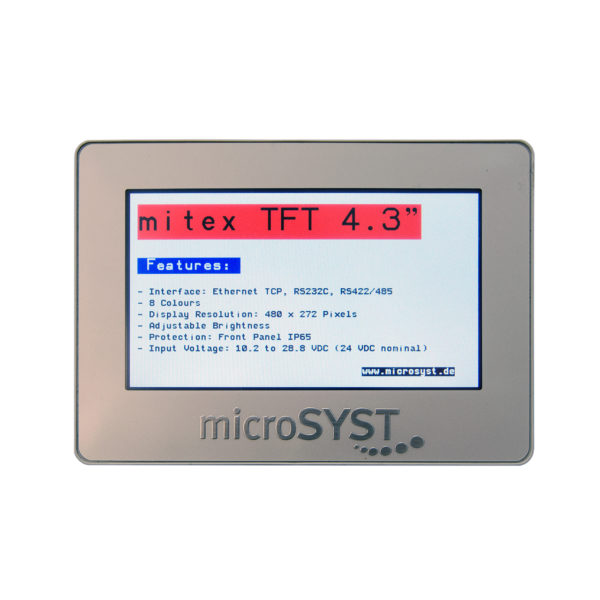

The “mitex TFT” is a touchscreen HMI panel with a multicoloured TFT display.
System Advantages
- Easy management of production data via USB and Ethernet interface
- Telegram based activation for a simple data transfer
- Eight-coloured, high-contrast TFT display
- Designed for industrial application (front panel IP65 protection)
- Perfect presentation of information due to variable character heights and adjustable display brightness
- Active display area (h x v): 95 x 53,9 mm
Character Height Options
- 4,3″ display (resolution 480 x 272 pixel, 5 – 27 lines displayable) with variable character heights
3 versions available with different Interfaces –
- Display with Ethernet
- Display with serial interface (RS-232C or RS-422/485)
- Display with USB interface
