Overview

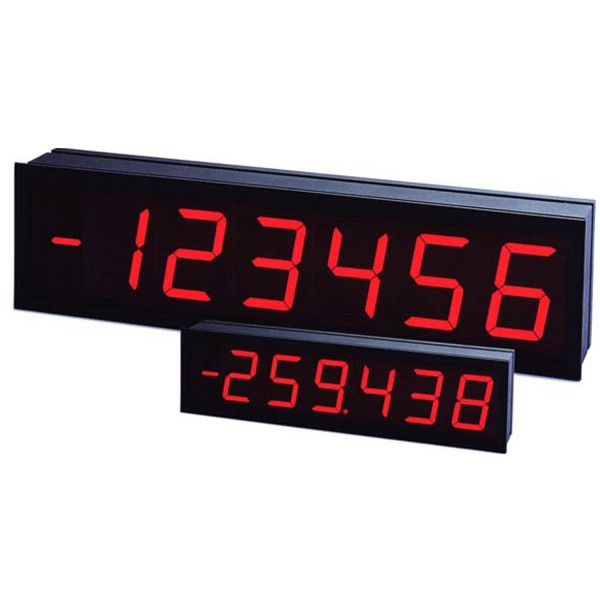

The OC100 meter with Large Display with 100mm digit size is designed for industrial applications with inputs for DC and AC voltages and currents, serial data ports RS232, RS485, RS422, TTY, frequencies and pulses, temperature sensors and many other.

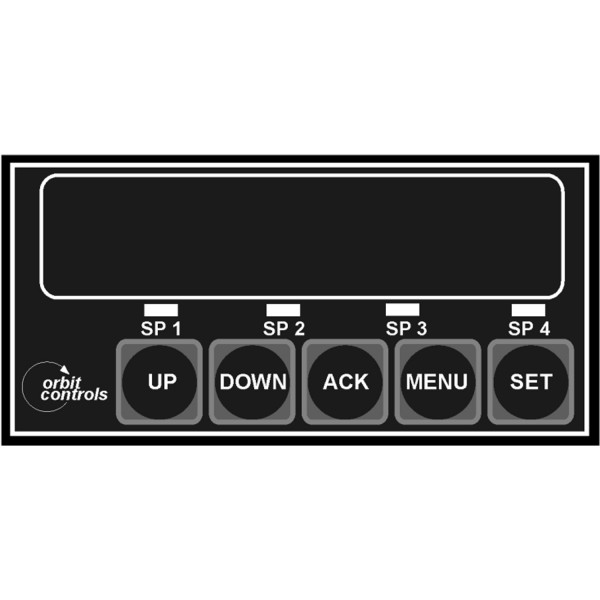

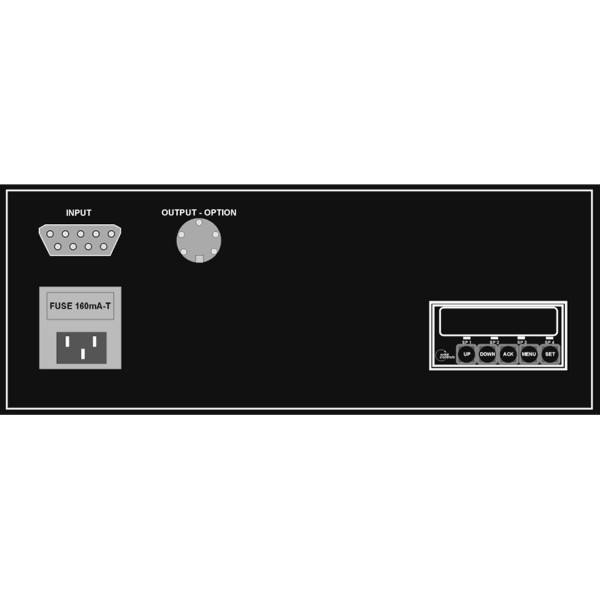

The parameters such as scaling, set points, analog outputs, data ports etc. are entered via the keyboard at the instruments rear. Customized displays and programmes are available upon request.
Features of the OC100
- 6 digit display ± 999999
- Free programmable
- Analogue Output
- Serial Output Ports
- Excitation
- Supply 115/230VAC
Features for Option OC100-DC, Large Display for DC Signal:
- Up to ±200 000 increments
- Inputs 4-20mA, 2V … 200 VDC
Features for Option OC100-RMS, True RMS Large Display:
- 0- 200mV to 0 – 380V true RMS
- 0- 20mA to 0 – 10A true RMS
- 0- 2500 W true RMS
- Up to 20 000 true increments
Features for Option OC100-RS, Large Display for Serial Ports:
- Input for RS232, RS485, TTY
- Four Set Point Relay
- Addressable Bus Operation
Features for option OC100-COUNT, Large Display Counter:
- Tachometer, Frequency Counter
- Up-Down Counter
- Quadrature Counter
- Absolute Code Gray, binary, SSI, EnDat, RS485 serial
- RS232, RS485 at output
- Four Set Point Relay
Features for option OC100-T, Large Display Timer:
- Timer with START-STOP-RESET
- Selectable Display Formats
- DCF77 Synchronizing
- Two Set Point Relay
Features for option OC100-TEMP, Temperature Large Display:
- Pt- 100 and Pt – 1000
- Thermocouples J,K,E,S,B,T,C
- Two Set Point Relay
Features for option OC100-DP, Large Display for Profibus:
- Input for Profibus DP
- One Set Point Relay
