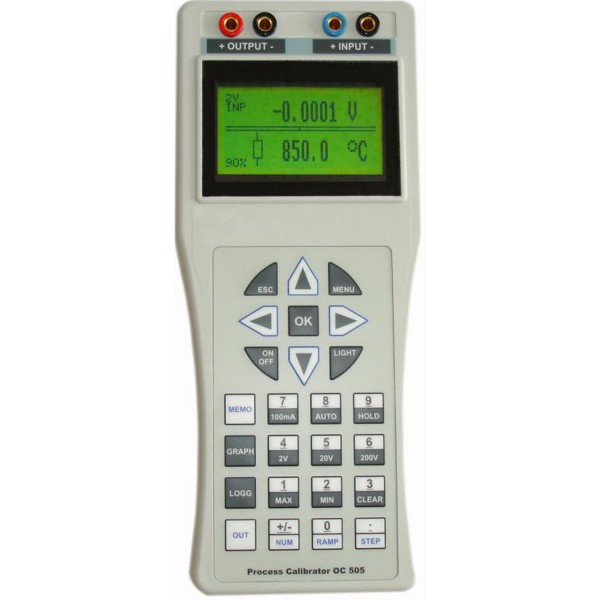

Model OC505-D is a hand-held Calibrator-Multimeter-Datalogger for the generation of currents 0-22mA in Source or SinkMode and voltages 0-25VDC. External voltages ±2V, ±20V and ±200VDC (selected ranges or auto range) and currents of up to ±100mA can be measured simultaneously with the generated calibrating signals.
Further functions are the generation of mV-Signals, the simulation of DIN-Thermocouples, the generation of Resistances and RTD Temperature Sensors. Up to eight fast input signals-Transients- can be measured, memorized and shown on the display as graphics or uploaded to a PC.
Datalogger Function: The generated calibrator signal and the measured signal at the multimeter input will be stored as tables with date and time added. The interval is selectable from 2sec. to 24h. The data can be transferred to a PC,shown as tables and handled under Windows. Supporting SoftManager permits the communication with Windows.
- Current Output 0-22mA,Source/Sink
- Voltage Output 0-25V
- mV Outputs 0-27mV and 0-540 mV
- DIN Thermocouples J, K, N, R, S,T, B, E
- RTD Simulator -200 … 850°C
- Resistance Range up to 3kOhm
- Multimeter ±2V to ±200V DC and ±100mA
- Measurements of fast Transients
