Overview
The OCB777 is a bargraph with five digits, high resolution display. The bargraph and the digital display are individually programmable in order to show the measured process units. The standard lens shows 0-100% and can optionally be customized.
The input is designed for standard process signals 0-10V or 0/4-20mA. Two Set Point Relays are available for control applications.
The OCB777 Digital Display permits a resolution of 16 bit. In the measuring mode the display shows the input signal, in programming mode the parameters.
The gauge is enclosed in a PUR case and supplied from 24VDC or 115-230VAC mains.

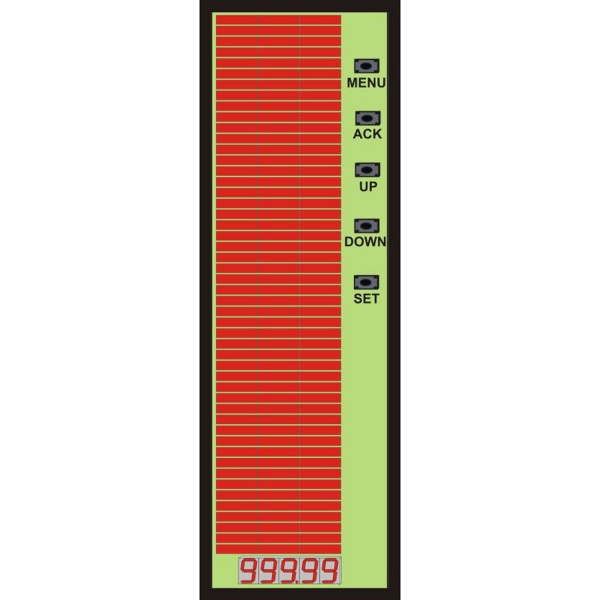

The parameters are entered with keys behind the front lens.
Features of the OCB777
- Input for process Signal 0/4-20 mA or 0-10V

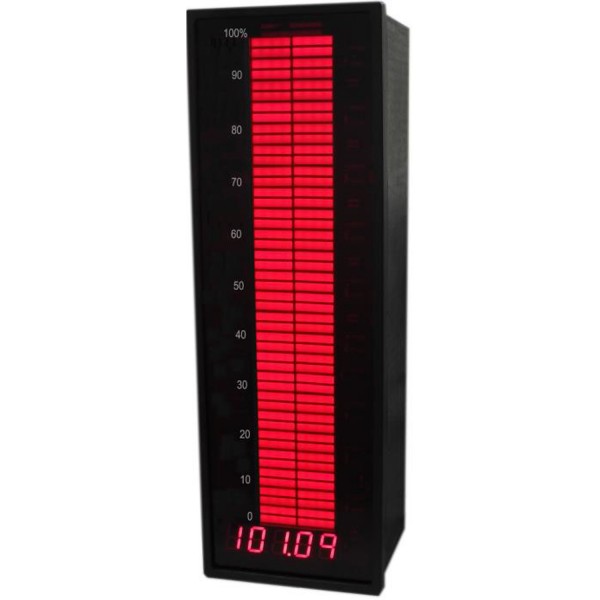

- 50 Bargraph Segments and 5 digits Display
- 244mm Bar length
- 0 – 100% Standard Scale

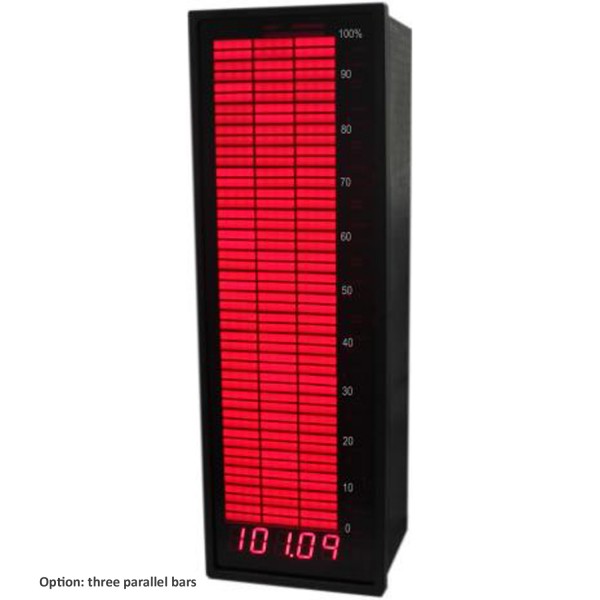

- Two or three parallel Bars
- Two Set Point Relays
- Supply 24VDC or Mains 115-230VAC
- DIN case
