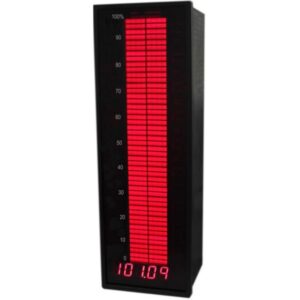

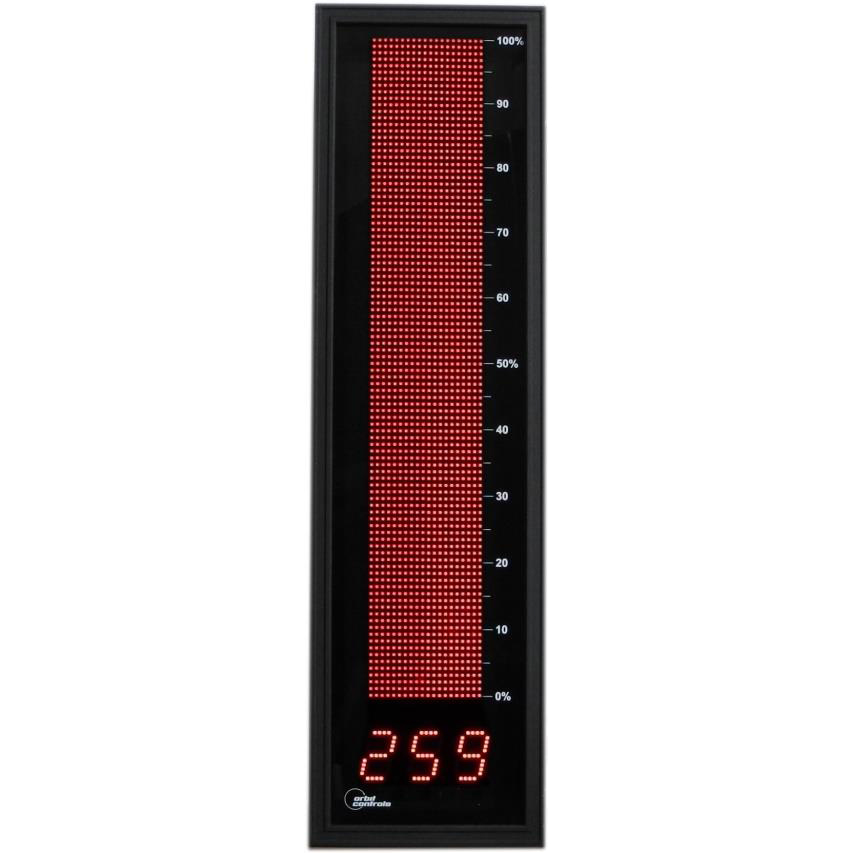

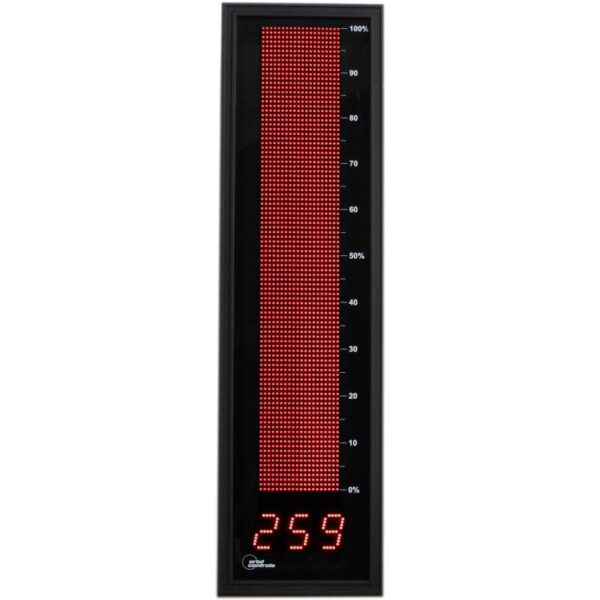

Orbit Controls Model OCB2211 is a large Bargraph with 80x500mm LED Matrix.
It is designed for AC and DC Process Signals 0/4-20mA, 0-10VDC, Resistors and Potentiometers, RTD, Pressure Gauges and Load Cells as well as Signals from Serial Data Ports RS232 and RS485.
A three digit display permits accurate measurement of the input signal.
OCB 2211 is enclosed in black aluminium case with IP64 front protection and is supplied from the mains.
OCB2211 is enclosed in black aluminium case with IP64 front protection and is supplied from the mains.
Features of the OCB2211
- Process Signals 0/4-20 mA, 0-10V
- RTD Thermometers, Resistors and Potentiometers
- Thermocouples J, K, R, S, T, B, C
- Frequency and Pulse Inputs
- True R.M.S. and Power Measurements
- RS232, RS485 serial Data Inputs
- Bar dimensions 500 x 80 mm with 100 Lines
- Linearizing option available
Note: all parameters are factory-set (no user configuration is required)
