Overview

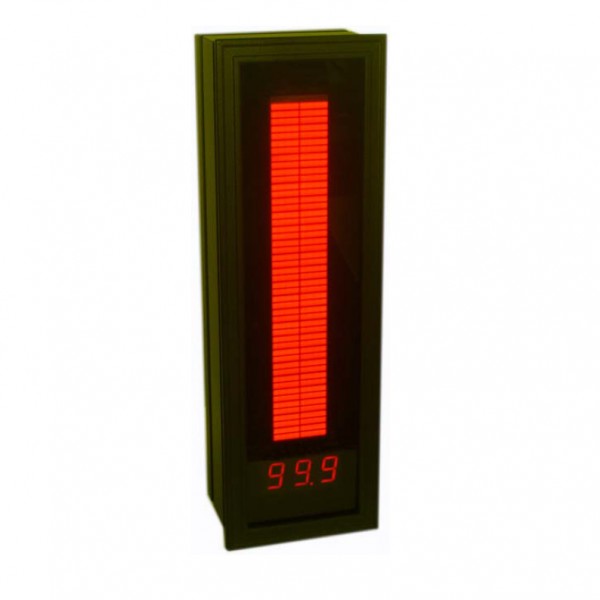

The OCB557-A is a large 250mm bargraph with additional 3 LED digital display.
It is designed for connection to analogue process signals.
Both displays can be individually programmed, brightness can be externally controlled from 0-100%.
For linear representation of non-linear signals a linearizing function is available.
Features of the OCB557-A
- Bargraph with 100 Segments and 3 Digits Display (20mm digits)
- Inputs DC and AC voltage and 4…20mA, TC and RTD, Frequency and Pulses, Integration of analogue signals
- Protection: IP65 (front)
- Supply 18-36VDC or 100-240VAC
- Cabinet 110x366x82mm, black anodized aluminum.
EMAIL US for details of RS485 input version or if you require any further assistance.
