QM421

QM421

Meter Controller with Integrated Axial Probe

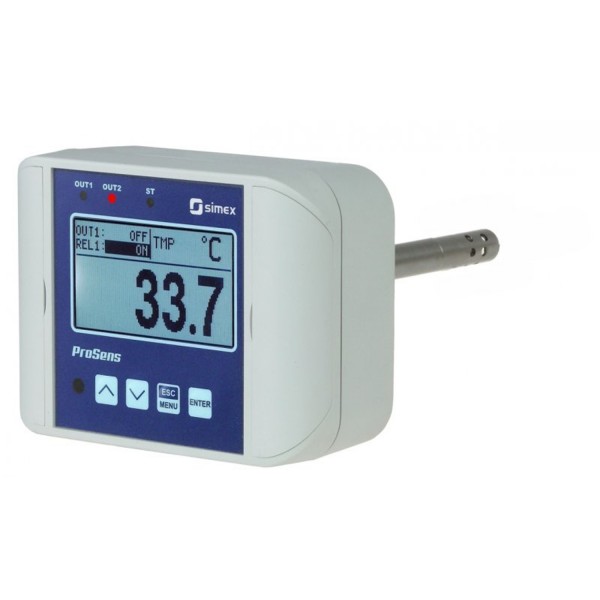

The Simex ProSens QM421 is a Meter Controller with Integrated Axial Probe, LCD Display and wall-mount case.

Indicator / Controller
120 x 90 x 50 mm
Graphic LCD 128 x 64 points
various
universal
Ammeter
Humidity meter
Temperature meter
Voltmeter

Types

Case Size (front)

Digits

Digit Height

Input Options

Meter Type

, , ,

Add to compare

Documentation & Downloads

Overview

QM421 is part of the ProSens range of meter controllers from Simex.

ProSens is a new series of modern industrial devices, which integrates sensors, converters, meters and controllers functionalities. Using the latest miniaturisation technologies these compact devices are able to be equipped with two independent universal inputs, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol.

Model QM-421 has integrated axial temperature or temperature and humidity probe, Ø 12 mm, L=200 mm, stainless steel 316L probe and filter cap.

A large built-in display and output signals mean that the ProSens units find applications in control systems. There are many industrial applications, where ProSens can act as stand-alone controller. It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect device for distributed monitoring system.

Features of the QM421

  • Power Supply: 24V DC (11 ÷ 36V DC)
  • Probe: integrated axial, length 200 mm, Ø 12 mm, stainless steel 316L, PTFE filter cap
  • Inputs: 0 or 1 universal: current; voltage; thermocouple K, S, J, T, N, R, B, E types
  • Binary Outputs: 0, 1 or 2 electronic NO relays, 24V AC/35V DC, max. 200 mA
  • Analogue Outputs: 0, 1 or 2: active current: operating range 0/4-20 mA (0-24 mA max.); passive current: isolated, operating range 4-20 mA (2.8-24 mA max.); active voltage: operating range 0/1-5V, 0/2-10V (0-11V max.)
  • Communication Interface: RS-485
  • Case: wall-mounted, 120 x 90 x 50 mm
  • Protection Class: IP 67 (version without display); IP 65 (version with display)

Accessories for the QM421

See the pdf brochure for details of ProSens Accessories including:

Cable Probes (PPQ), Filters (FPQ), Connection Accessories (CPQ) and Mounting Accessories (HPQ).
