Meter Controller with Integrated Axial Probe

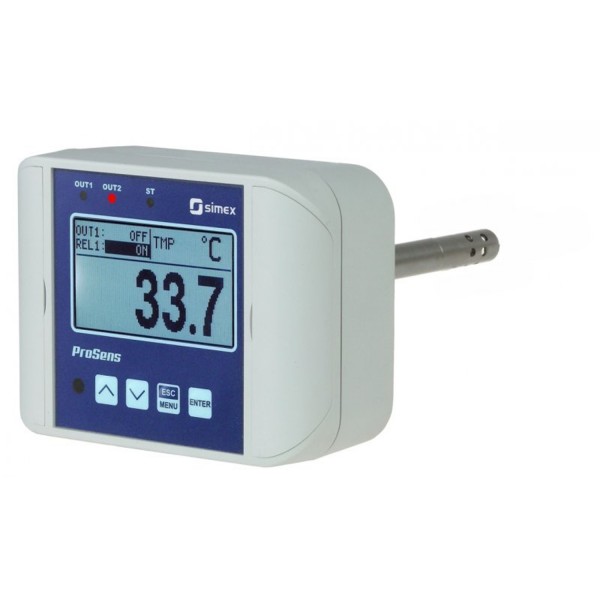

Simex ProSens QM422 Meter Controller with Integrated Axial Probe with LCD Display in Wall-Mount Case.

Indicator / Controller
120 x 90 x 50 mm
Graphic LCD 128 x 64 points
various
universal
Ammeter
Humidity meter
Temperature meter
Voltmeter

Types

Indicator / Controller

Case Size (front)

120 x 90 x 50 mm

Digits

Graphic LCD 128 x 64 points

Digit Height

various

Input Options

universal

Meter Type

Ammeter, Humidity meter, Temperature meter, Voltmeter

Add to compare
Estimated Delivery 25th March - 1st April
Categories: , Supplier:

Documentation & Downloads

Overview

QM422 is part of the ProSens range of meter controllers from Simex.

ProSens is a new series of modern industrial devices, which integrates sensors, converters, meters and controllers functionalities. Using the latest miniaturisation technologies these compact devices are able to be equipped with two independent universal inputs, two binary or two analogue outputs, as well as communication port RS-485 with Modbus protocol.

Model QM-422 has integrated axial temperature or temperature and humidity probe, Ø 12 mm, L=300 mm, stainless steel 316L probe and filter cap.

A large built-in display and output signals mean that the ProSens units find applications in control systems. There are many industrial applications, where ProSens can act as stand-alone controller. It can also cooperate with master devices via Modbus protocol, being part of big network, which makes it perfect device for distributed monitoring system.

Features of the QM422

  • Power Supply: 24V DC (11 ÷ 36V DC)
  • Probe: integrated axial, length 300 mm, Ø 12 mm, stainless steel 316L, PTFE filter cap
  • Inputs: 0 or 1 universal: current; voltage; thermocouple K, S, J, T, N, R, B, E types
  • Binary Outputs: 0, 1 or 2 electronic NO relays, 24V AC/35V DC, max. 200 mA
  • Analogue Outputs: 0, 1 or 2: active current: operating range 0/4-20 mA (0-24 mA max.); passive current: isolated, operating range 4-20 mA (2.8-24 mA max.); active voltage: operating range 0/1-5V, 0/2-10V (0-11V max.)
  • Communication Interface: RS-485
  • Case: wall-mounted, 120 x 90 x 50 mm
  • Protection Class: IP 67 (version without display); IP 65 (version with display)

Accessories for the QM422

See the pdf brochure for details of ProSens Accessories including:

Cable Probes (PPQ), Filters (FPQ), Connection Accessories (CPQ) and Mounting Accessories (HPQ).
