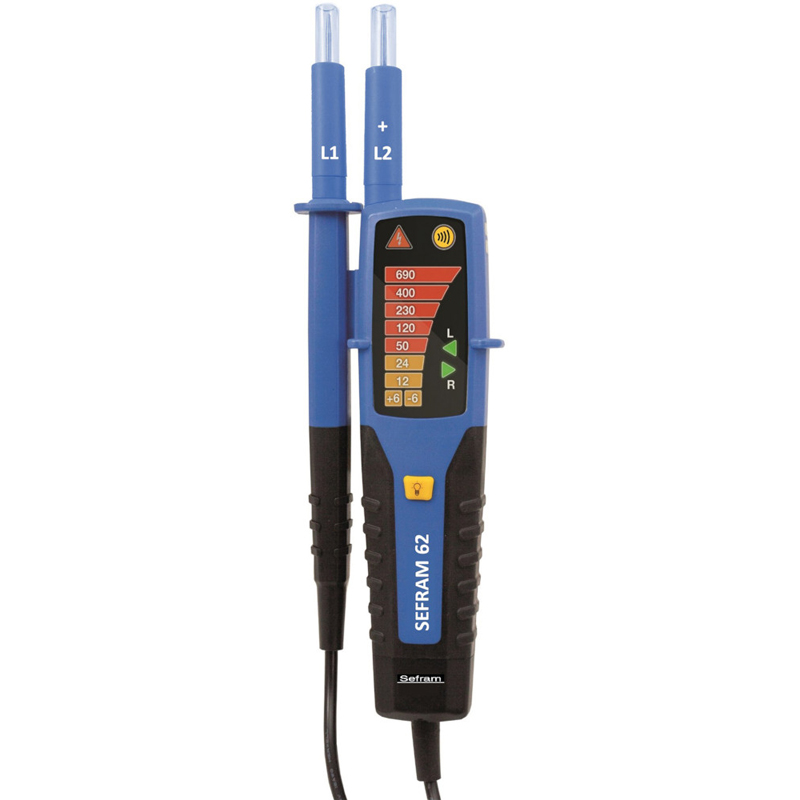

The new Sefram 62 is an easy-to-use LED voltage and continuity tester. Expertly designed, tested and approved according to the EN61243-3 standard with IP2X test probes, the user will be protected in any cases, including misuse of the instrument.
Built within a robust housing ensures this instrument is a field device resilient to daily shocks.
This tester is equipped with a torch light for measurements in dark environments.
Features of the Sefram 62
- Start voltage : 6V
- Voltage test AC and DC to 690 V
- Polarity indication
- Continuity test
- Single-pole phase test
- Torch light
- Phase rotation test
- Side detection for ELV and continuity
- Auto-power ON / OFF
- Safety : CAT IV/600 V / CAT III/690 V
- Pouch Model SC518 with belt clip
- Belt case Model SC523
Metrix Electronics has been an authorized agent for the Sefram range of portable test and measurement instruments for over 15 years.
