Overview

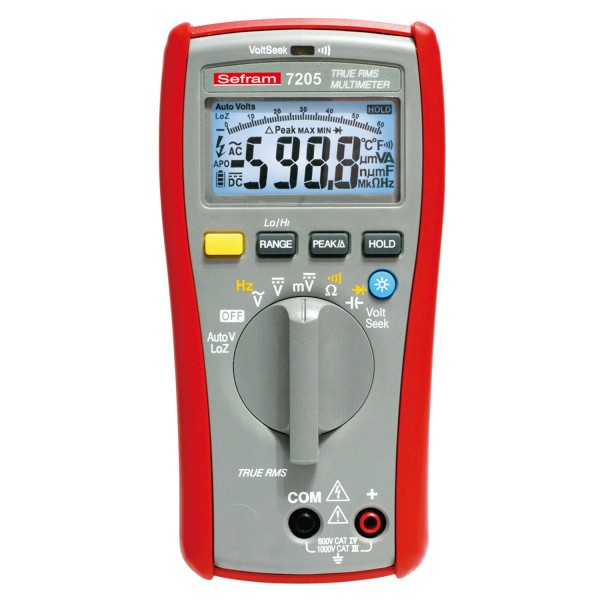

The Sefram 7205 is a TRMS AC Digital Multimeter.
The new 7205-7206-7207 series offers TRMS AC measurement with a crest factor up to 3. All types of signals can be measured with an excellent accuracy and full safety for the user (CAT IV 600V and CAT III 1000V).
Main features of the 7205:
- 6000 counts display
- Voltage measurement: up to 1000V AC and DC
- Low impedance range for voltage measurement
- Frequency measurement
- Capacitance measurement
- Resistance measurement up to 40Mohms
- Continuity test with buzzer
- Non contact voltage detector with dual sensitivity
- Peak-Hold and relative mode
- Large LCD with backlight
- Protective holster with magnet
- Safety: CAT IV 600V and CAT III 1000V
