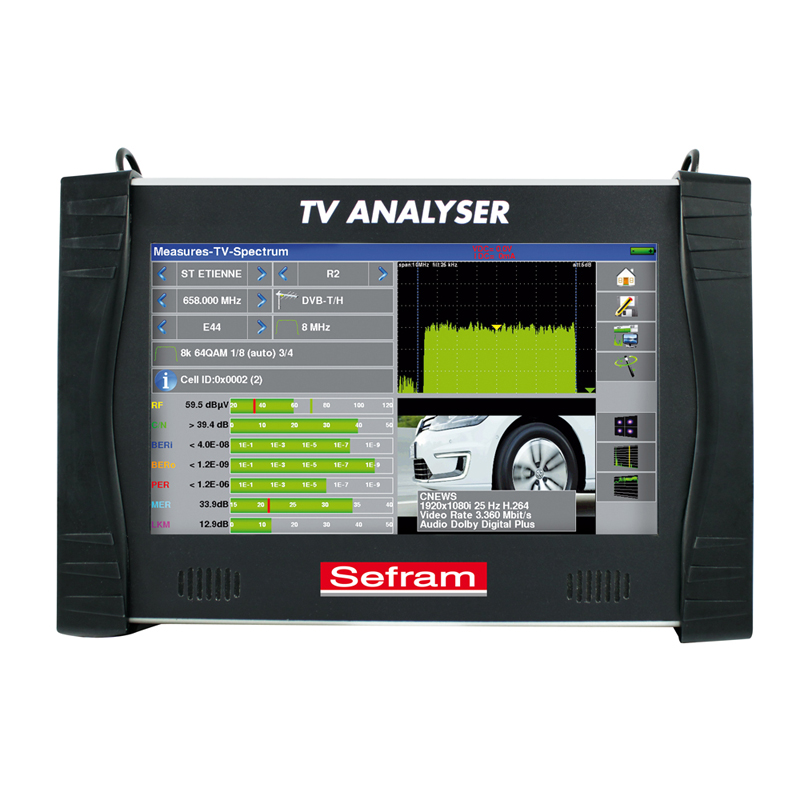

Sefram 7880
Sefram 7880 video

Sefram 7880

TV Meter for Terrestrial, cable and satellite, MPEG4 and HEVC decoding

Sefram 7880 TV Meter for Terrestrial (DVB-T, DVB-T2), cable (DVB-C) and satellite (DVB-S, DVB-S2), MPEG4 (H264) and HEVC (H265) decoding.

Add to compare

Documentation

Overview

The Sefram 7880 is part of a family of another new generation of TV Meters / TV Analysers combining the best of technology and innovation. All instruments of this new family boast high end features, innovative design and furthermore a powerful user interface.

Features of the Sefram 7880

  • Panoramic LCD touch screen: 10 inches (16:9)
  • Display free to air programs for digital terrestrial, cable and satellite
  • Show High Definition TV programs MPEG4-H264 and HEVC (H265)
  • View and Analyse Analogue TV programs
  • All measurements for DVB-T/T2, DVB-C/C2 (J83-A and B), DVB-S, DVB-S2, WiFi
  • Ultra fast spectrum analysis and expert spectrum analysis
  • Checksat mode with NIT (satellite recognition)
  • LTE function to help the diagnostic of filter
  • Real time echoes and pre-echoes measurement with zoom
  • Constellation diagram with zoom
  • Three in one display: measurement, TV picture, mini spectrum
  • Graphical display of measurements
  • HDMI interface
  • Multistream capability
  • Shoulder measurement
  • Memorize and export/import data with USB memory stick
  • Battery with 1 hour charging time and 4 hours autonomy
  • Supplied with carrying bag and protection pouch
  • Weight: 2,8kg

The most complete TV Meter on the Market

Above all we understand time is money! Besides offering the best of innovation the Sefram 7880 can carry out tasks fast and efficiently. Setup a TV receiving system in record time with the following expert functions of the 7880:

  • fast and expert spectrum analysis
  • checksat mode with NIT
  • Cell ID function
  • real time echoes and pre-echoes
  • MER per carrier
  • constellation diagram
  • fast Autoset
  • Multistream capability
  • LTE function to help the diagnostic of spurious filtering

Easy to Use

Due to the direct access to functionality from the touch screen, operation is almost like a game: dedicated icons, special “home” function to go back to main menu, virtual keyboard to enter your specific data, possibility to export / import file on USB memory stick,… Getting started with the new SEFRAM 7880 is fast, easy and above all fun.

Safety and Security

In order to protect your TV meter, we have designed a robust metal housing with a protective pouch. Your safety is important to us, as a result an ingenious system of belts and clip and a light transportation bag has been designed.

Panoramic Touch Screen

Finally, with the largest and brightest LCD of the market, using the new TV meter is possible in all conditions of light, including in sunny environment. The 10.1″ touch screen means you will use your new TV meter like a smartphone or a tablet: no need to worry where and which button to push, due to the large screen everything is displayed in a clear and easy way. Incredibly user friendly!
