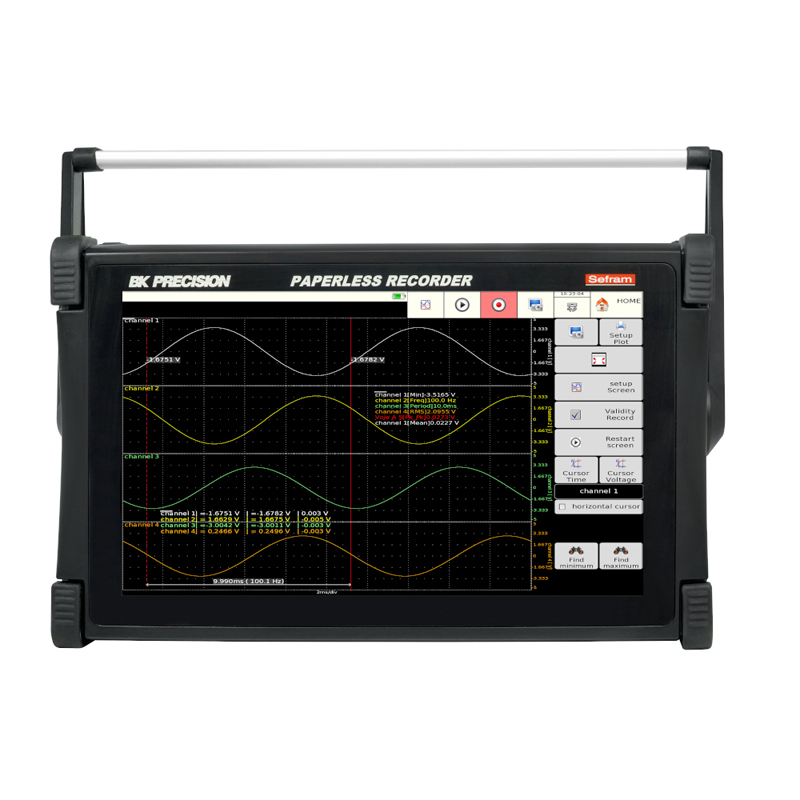

Sefram DAS 700

High Speed DAS 6 channel handheld recorder

Sefram DAS 700 high speed data recorder with 6 channels, paperless and with panoramic touch screen.

100kHz
6
LAN & USB (WiFi option)
No
Optional

Maximum speed

Maximum input channels

Interface

Printer

Internal battery

Add to compare
Estimated Delivery 18th May - 25th May
Categories: , Supplier:

Overview

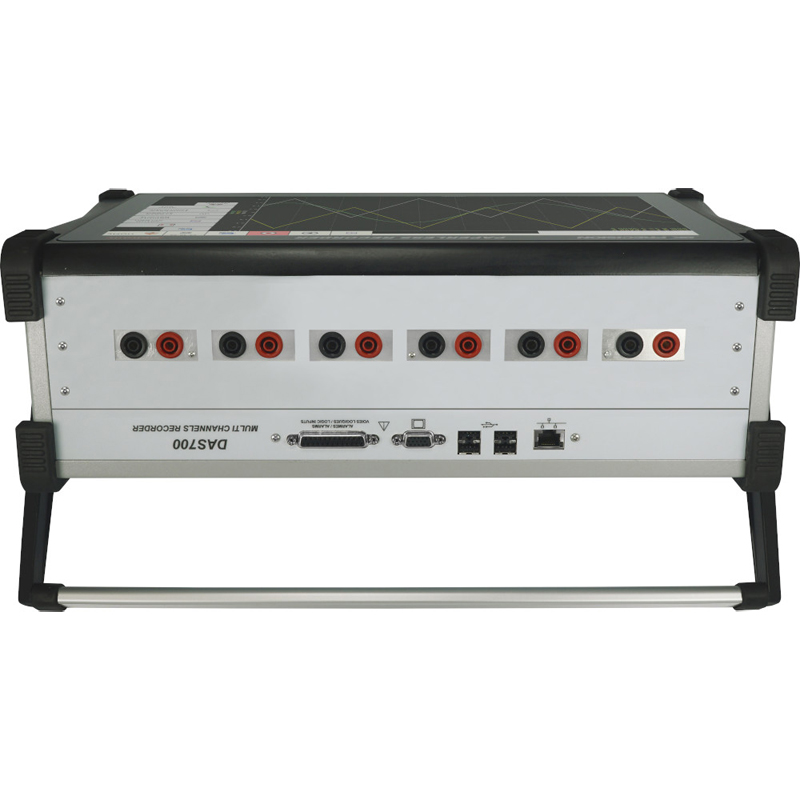

DAS 700 is a paperless tactile Data Acquisition Solution with 6 universal isolated channels

The Data Acquisition Solution DAS700 and the DAS 700SV (without fan) is a High-Speed Recorder that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V; 4-20 mA), etc.. With its 6 universal analog channels and 16 logical inputs you can record long term measurements with a sampling rate of 1MHz taking full use of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can be analysed on license-free software from Sefram.

DAS700 combines autonomy, power and simplicity making it the right answer to your recording needs.

Features of the DAS 700

  • 6 analogue channels
  • Universal inputs
  • DC, AC+DC RMS voltage measurement
  • Frequency, Thermocouple, Pt100
  • 14 Bit resolution
  • 16 logical channels
  • 15.4 inch TFT colour touch screen
  • 1 Mega sample/s sampling rate
  • 128 Mword memory
  • 500 GB internal hard disk
  • Interfaces: 6 X USB, Ethernet, XGA
  • Power analysis function: 50Hz, 60Hz, 400 Hz, 1 kHz
  • Battery option (except DAS 700SV)
  • WiFi option
  • 19’’ rackmount kit (option)
  • Go-No-Go mode
  • IEC 1010 CAT III 600 V

Options

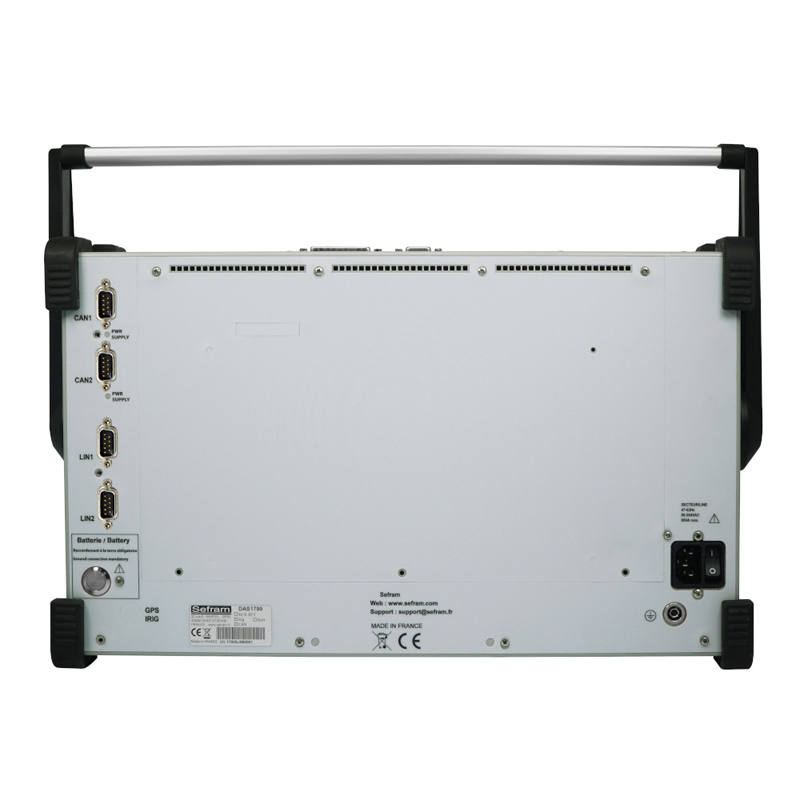

  • CAN – LIN bus (2 CAN ports, 2 LIN input) – factory option
  • WiFi interface
  • Internal battery – factory option
  • 2 TB memory extension
  • GPS option – internal clock synchronisation with GPS time
  • High impedance input option
