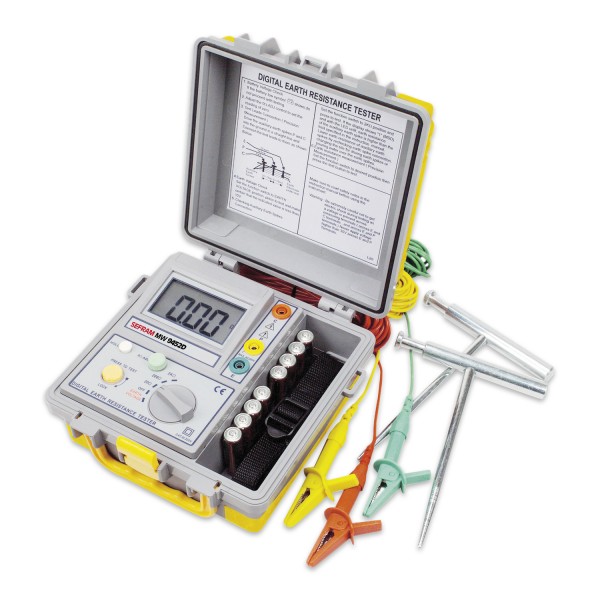

Sefram MW9452D

Sefram MW9452D

Earth Resistance Tester

Sefram MW9452D Earth Resistance Tester.

Earth resistance tester

Types

Add to compare
Categories: , Supplier:

Documentation & Downloads

Overview

Sefram MW9452D Earth Resistance Tester.

  • Measures earth resistance from 0 to 2000 ohms with 2 or 3 rods
  • Measures ground voltage
  • Robust (dual material) case
  • Delivered with rods and cables



Technical Specification

  • Earth resistance: 0 /20 /200 /2000 ohms with accuracy ±(2% + 2d)
  • Measurement current: 2 mA Approx.
  • Short circuit: Yes (LED)
  • Earth voltage: 0 to 200 VAC with accuracy ±(1%+2d)



General Specification

  • Display: 2000 cts
  • Power supply: 8 x1,5 V type AA ( LR6)
  • Dimensions& Weight: 170 x 165 x 92 mm, 1Kg
  • IEC1010 300 V CAT II



Supplied with a set of 3 cables (SE 713), 3 alligators clips and 2 rods.
