Overview

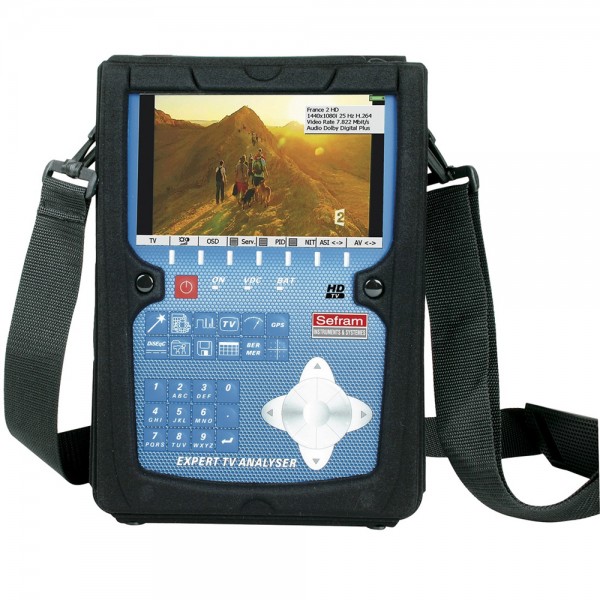

Sefram 7866 HDT2 TV Meter for cable, terrestrial and satellite TV, with MPEG2 and MPEG4 (H264) decoding, GPS, ASI TS I/O.
The SEFRAM 7866HDT2 provides all necessary measurements for DVB-T2, DVB-T/H, DVB-C, DVB-S and DVB-S2. The panoramic TFT display will show all parameters and measurements for the selected channel.
Time is money! With the ultra fast spectrum analysis, NIT, Checksat mode, autoset, real time echoes, constellation diagram, impulse response, MER versus carrier (DVB-T and T2), complete OSD the SEFRAM 7866HDT2 will save your precious time during antenna setup. The SEFRAM 7866HDT2 includes a GPS function for mapping the signal parameters.
Direct access to functions makes the SEFRAM 7866HDT2 intuitive and very easy to use. Getting started with the TV meter is like a game!
Weighing only 2.1kg, the SEFRAM 7866HDT2 will be the ideal companion for all your measurements on the field. Its compact size will provide better safety and makes your work easier.
With its panoramic 7 inch LCD screen (16:9), the reading of measurements will be easier than any other product available on the market.
The new SEFRAM 7866HD displays high definition TV programs (MPEG4-H264) with the decoding of all digital sounds in standard, including Dolby, Dolby Digital, AAC and HE-AAC.
Features of the Sefram 7866
- Panoramic 7 inch LCD coloured screen
- Weight : 2,1kg
- Display free to air programs for digital terrestrial, cable and satellite
- Display High Definition TV programs MPEG4-H264
- Full measurements DVB-T2, DVB-T/H, DVB-C, DVB-S and DVB-S2
- Full measurements for MPEG-2 and MPEG-4

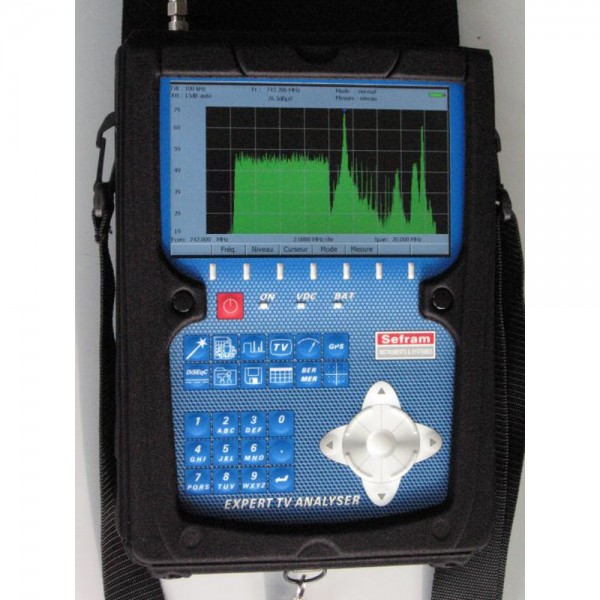

- Ultra fast spectrum analysis and expert spectrum analysis
- Checksat mode with NIT (satellite recognition)
- Real time echoes and pre-echoes measurement with zoom
- Constellation diagram with zoom
- OSD TV, PID audio and video, impulse response
- ASI TS input and output
- GPS module for mapping signals
- Graphical display of measurements
- Memorise and export/import data with USB memory stick
- Battery with 1 hour charging time and 4 hours autonomy
- Rugged carrying case
- Water proof front panel with sensitive button
- Optional PC software to create reports
