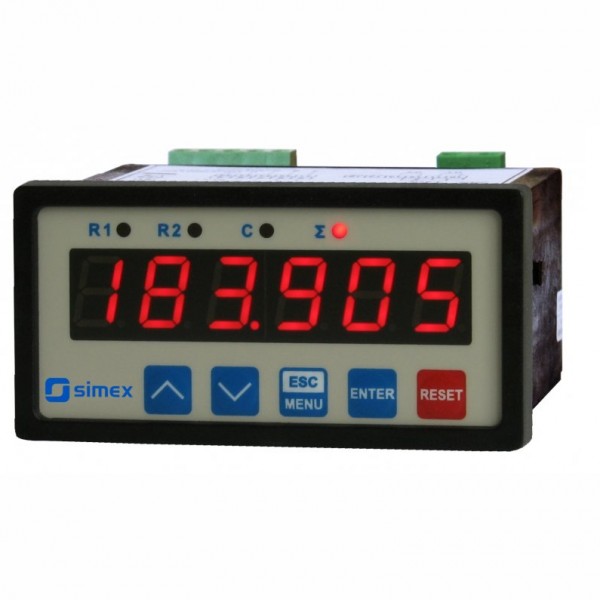

SLC-94 timer with 6 LED digits (13mm) and START/STOP pulse inputs with counter reset input.
The SLC-94 is designed for precision time (period) measurements, e.g. duration of time interval and measurements of a machine’s operating time.

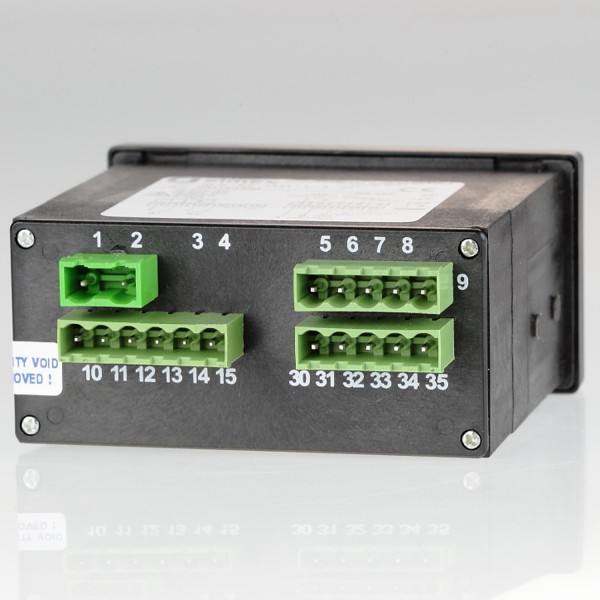

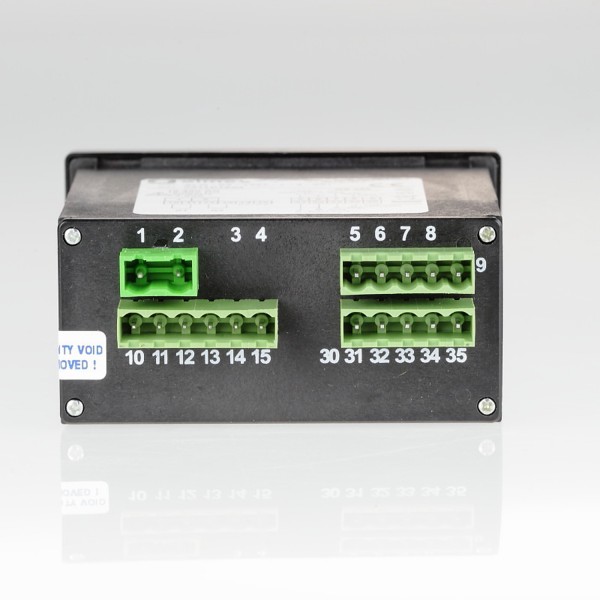

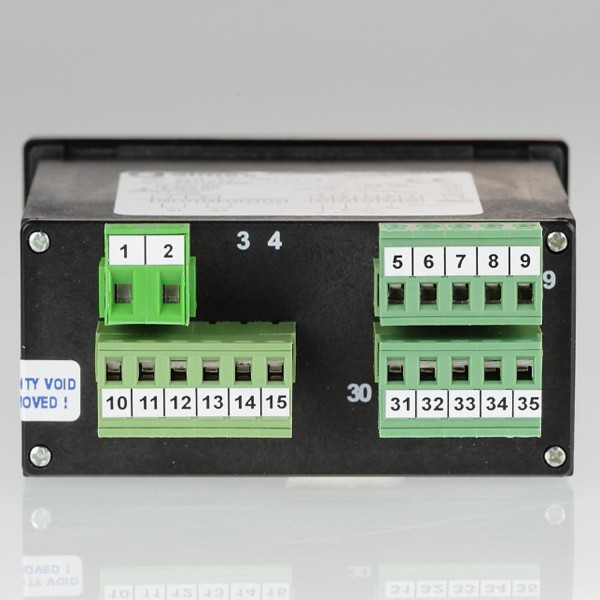

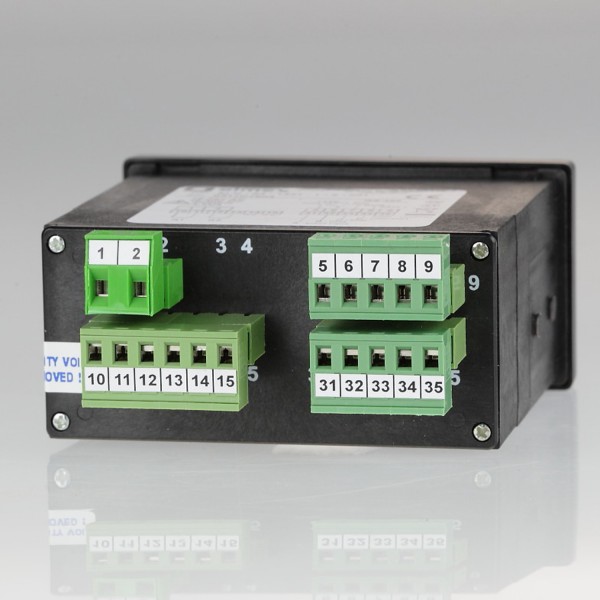

Signals from push-buttons or contactors of control devices are connected to the terminals placed on back side of the timer. Once the counter has been programmed it to do so it allows to measure time period between {START} and {STOP} signals. Further configuration allows to measure the activity time of {START} signal. In addition the measure can be started, stopped and cleared using local keyboard (on front of the device) or via RS-485 interface.
Apart from the basic function of time counting the timer can also be used as a totalizer. Both counters are triggered and stopped simultaneously.
Time counting is realised in range 0 ms to 999 99.9 hours. The two relay outputs allow use of this counter for control of time dependent processes.
The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features of the SLC-94
- Display: LED, 6 x 13 mm high, red (green – on request)
- Case dimensions (front): 96 x 48mm
- Outputs: 2 relay / OC outputs (option)
- Communications: RS-485 / Modbus RTU
- Protection class : IP 65 (front), available additional frame IP 65 for panel cut-out sealing; IP 20 (case and connection clips)
