SLIK-N118
SLIK-N118 SLIK-N118 SLIK-N118 SLIK-N118 SLIK-N118

SLIK-N118

2 Input, 2 Output Multi-Purpose Counter

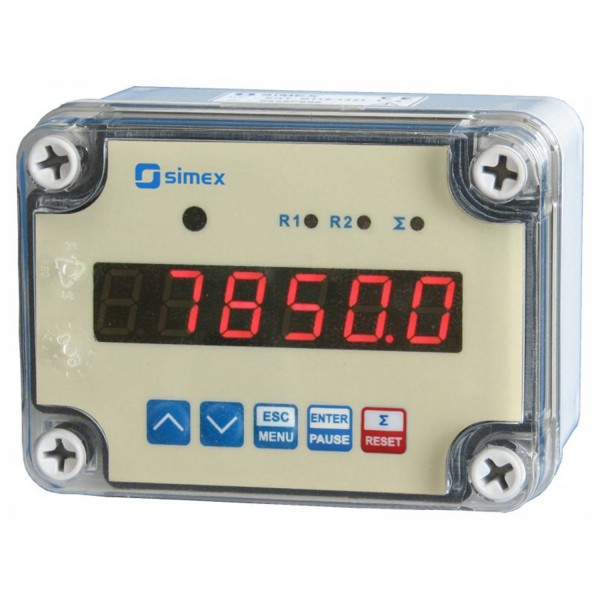

The Simex SLIK-N118 is a multi-purpose counter in wall-mounted IP 67 case.

Indicator / Controller
110x105mm
6
13mm
Pulse
Pulse counter

Types

Case Size (front)

Digits

Digit Height

Input Options

Meter Type

Add to compare
Estimated Delivery 26th January - 2nd February
Categories: , Supplier:

Documentation & Downloads

Overview

The Simex SLIK-N118 is a multi-purpose counter in wall-mounted IP 67 case.

The universal,programmable counter SLIK-N118 is equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing.

The SLIK-N118 counter features an independent reset input.

It has 2 relay (or OC) outputs with programmable thresholds, which can be used to control external equipment.

Built in RS-485 communication interface enables controlling of all settings by host, and allows use of unit in advanced network systems.

Features of the SLIK-N118

  • multi-purpose counter with batching function in wall mounted IP 67 case
  • 2 pulse counting inputs + 1 programmable function input
  • 1 counter reset input
  • 0 or 2 relay (or OC) outputs (option)
  • digital debouncing filter
  • 4 counter reset sources (manual, ext, auto, modbus)
  • programmable multiplier, divider, offset, decimal point position

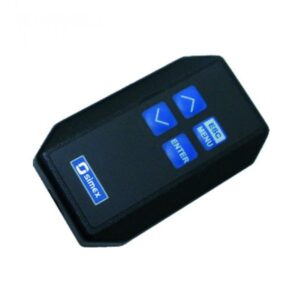

The remote controller (SIR-15) is not a part of the device and is available on request as an optional accessory.
