SPI-N118
SPI-N118 SPI-N118 SPI-N118 SPI-N118 SPI-N118

SPI-N118

Flow meter, Batcher, Totalizer

The SPI-N118 flow counters are encased in a tight, wall-mounted housing (IP 67) and designed to work together with flow transducers equipped with contact or electronic inputs.

Indicator / Controller
110x105mm
6
13mm
Pulse
Flow meter

Types

Indicator / Controller

Case Size (front)

110x105mm

Digits

6

Digit Height

13mm

Input Options

Pulse

Meter Type

Flow meter

Add to compare
Estimated Delivery 27th March - 3rd April
Categories: , Supplier:

Documentation & Downloads

Overview

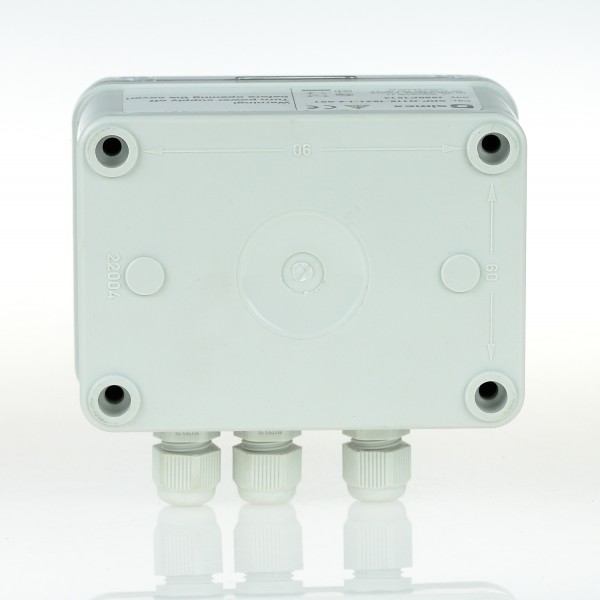

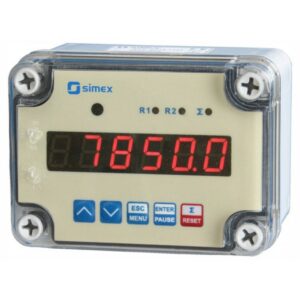

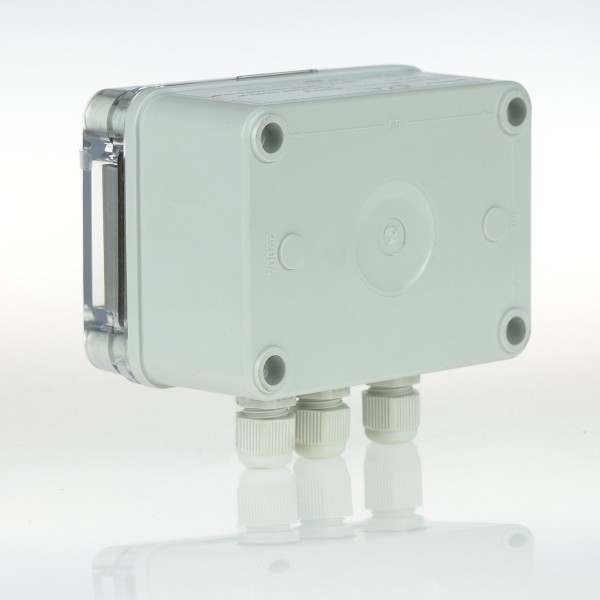

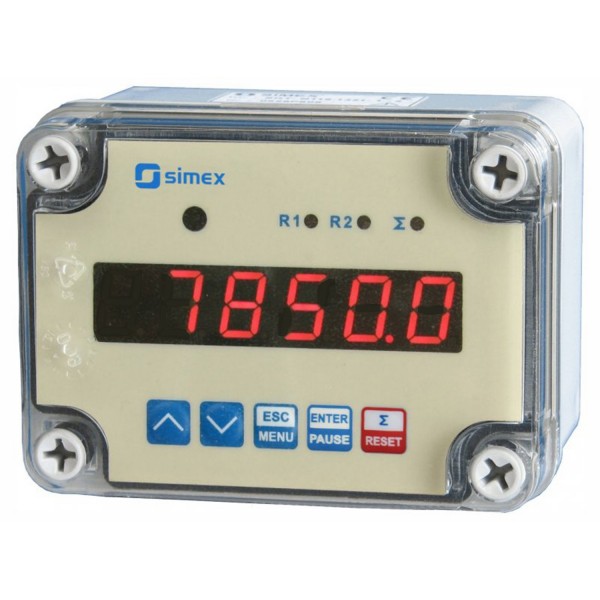

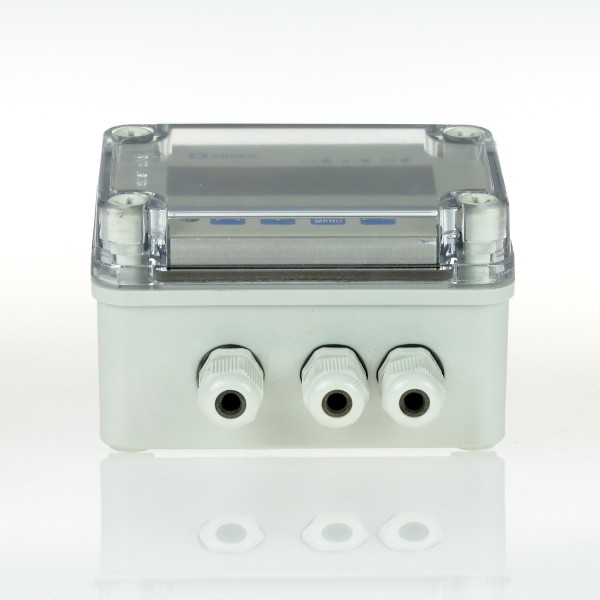

The Simex SPI-N118 is a flow meter in wall-mounted IP 67 case.

The SPI-N118 flow counters are encased in a tight, wall-mounted housing (IP 67) and designed to work together with flow transducers equipped with contact or electronic inputs.

The purpose of flow counters is to measure the instantaneous flow value and to record the total flow of media like liquids, gases or loose materials. A wide range of total flow indication (up to 16 digits) allows controlling the flow value for a long operation time. Thanks to the built-in batcher function the SPI-N118 counters can be used in many industries like: food, pharmaceutical or paint and varnish industry.

The REL / OC control outputs can be programmed depending on the instantaneous flow value, batcher or total flow value. Additionally the counter may be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.

The counter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.

Features of the SPI-N118

  • flow meter, batcher, totalizer in wall mounted IP 67 case
  • 1 pulse counting input + 3 control inputs
  • 0 or 2 REL / OC outputs
  • analogue output: active or passive, power supply output: 24V DC
  • RS-485 / Modbus RTU
  • display of instantaneous and the total flow values
  • batching and counting of doses
  • free configuration software S-Config

The remote controller (SIR-15) is not a part of the device and is available on request as an optional accessory.
