Overview

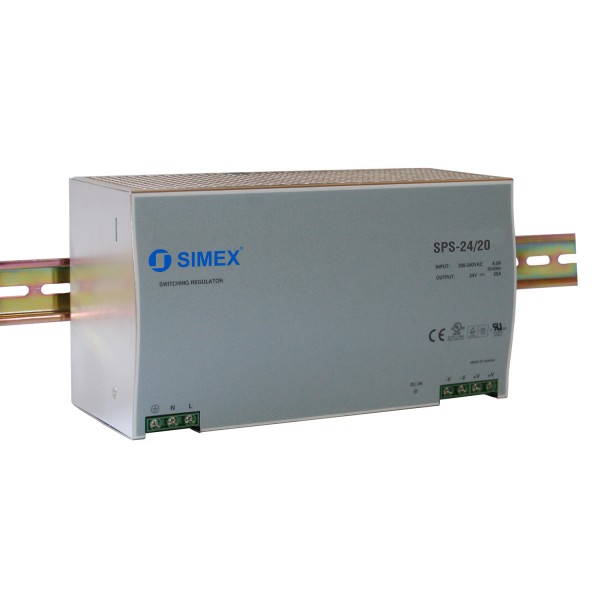

The Simex SPS-24/20 is a 480W Single Output Industrial DIN Rail Power Supply. Din Rail power supplies are a fanless design for installation on TS35/7,5 or TS35/15 industrial rails available as a slim line 480 Watt unit. Known uses include general industrial applications including factory automation, electromechanical industry, data communications, IT, power distribution boxes, control panels, building automation and household appliance control.
Features of the SPS-24/20
- single output, industrial DIN rail power supply
- universal AC input / full range
- protections: short circuit / overload / over voltage / over temperature
- LED indicator for power on
- 100% full load burn-in test
- built-in passive PFC function compliance to EN61000-3-2
- cooling by free air convection
- can be installed on DIN rail TS-35/7,5 or 15
- UL 508 (industrial control equipment) approved
- high efficiency 89% and low dissipation
- built-in constant current limiting circuit
- EN61000-6-2 (EN50082-2) industrial immunity level
