Overview

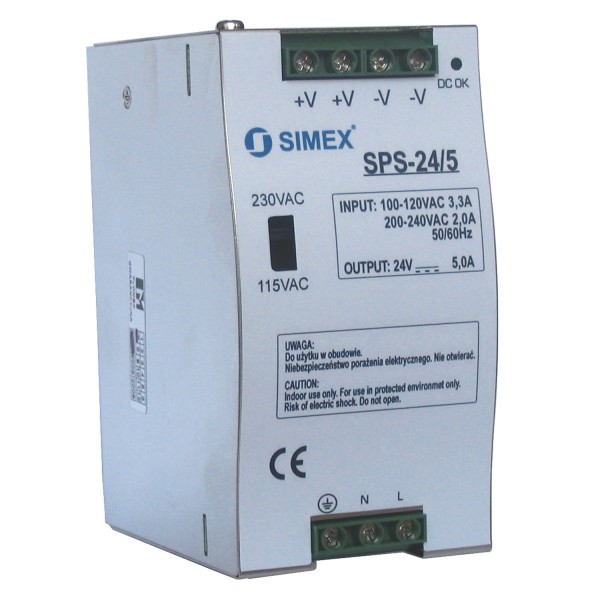

The Simex SPS-24/5 is a 120W Single Output Industrial DIN Rail Power Supply. Din Rail power supplies are a fanless design for installation on TS35/7,5 or TS35/15 industrial rails available as a slim line 120 Watt unit. Known uses include general industrial applications including factory automation, electromechanical industry, data communications, IT, power distribution boxes, control panels, building automation and household appliance control.
Features of the Simex SPS-24/5
- single output, industrial DIN rail power supply
- AC input range selectable by switch
- protections: short circuit / overload / over voltage / over temperature
- LED indicator for power on
- 100% full load burn-in test
- cooling by free air convection
- fixed switching frequency at 55KHz
- can be installed on DIN rail TS-35/7,5 or 15
- UL 508 (industrial control equipment) approved
- isolation class II
