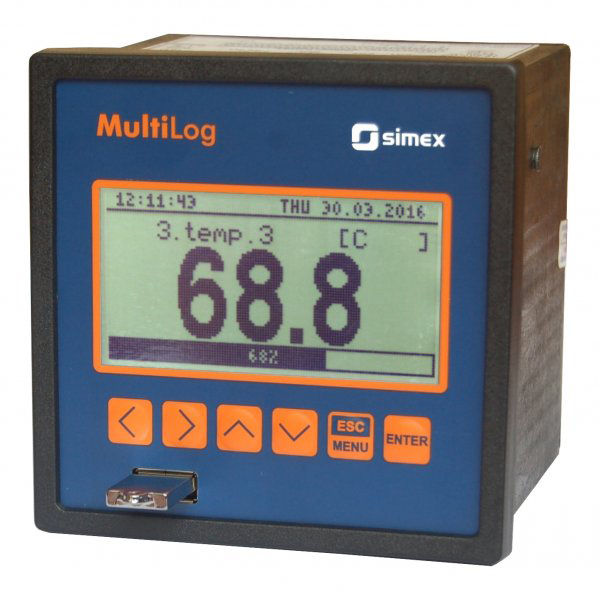

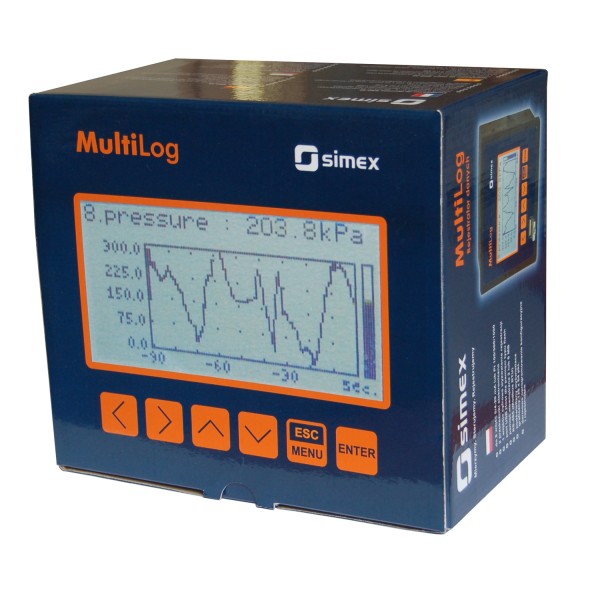

The SRD-99 was the first device launched in the MultiLog line of DIN panel-mount logging systems and now it is updated as the SRD-99X.
It’s a super-capable logging device yet affordable. The SRD-99X’s display is a clear and versatile 2.9″ monochrome graphic LCD and settings can be changed and interrogated using the integrated touch keys or via USB or RS485 (dependent on version).

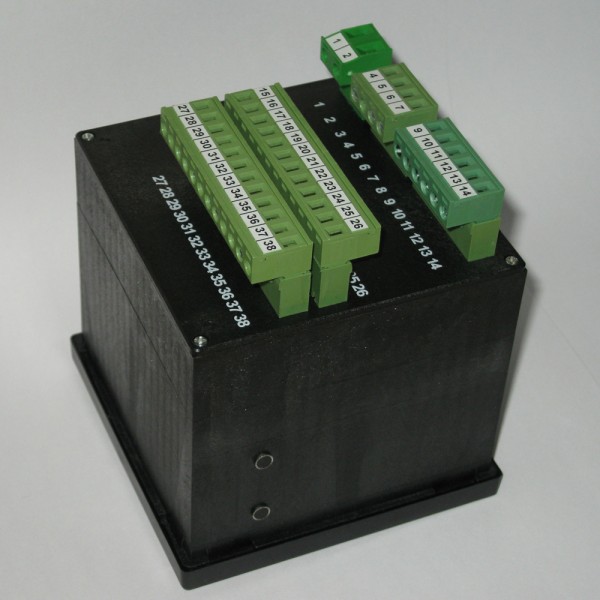

It can integrate up to eight universal inputs: temperature (RTD + TC) or analogue (U + I), one digital input for controlling a recording process, 2 electronic relay outputs with max. load 24V AC (35V DC) 200 mA, USB PC port for direct (by cable) PC connection to share data and USB Host port (front or rear) for flash data storage and configuration transfer.
Outputs are generally connected to signal critical situations with relays driving alarm buzzers or lamps. However within the expansive menu options (as standard) are features allowing the SRD-99 to handle numerous control and regulation applications.

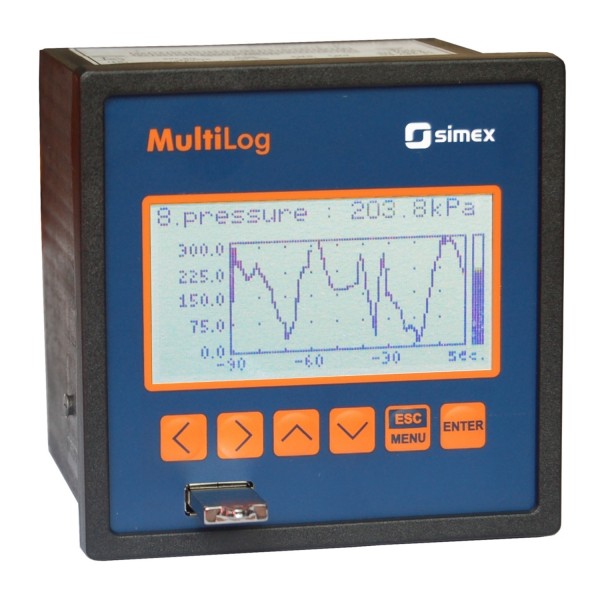

The new MultiLog SRD-99X can record and display current values as well as presenting logged parameters in the form of bar graphs and pie charts.
- universal inputs: RTD + TC or U + I
- 2 relay outputs
- memory up to 3 000 000 records (internal 8MB
- quick data transfer via ports: USB Host (USB flash drive), USB PC (wire), RS-485 (Modbus RTU)
- display measured values in °C or °F
- backlight: amber or white
- alternative wall mount version with fixed inputs: RTD, TC, U, I (SRD-N16)
Backlight colour: white
OR Backlight colour: amber
Input: 1 x U/I
OR Input: 4 x U/I
OR Input: 8 x U/I
OR Input: 1 x TC/RTD
OR Input: 4 x TC/RTD
OR Input: 8 x TC/RTD
Output: 2 x ER
Communication interface: RS-485 + front USB Host
OR Communication interface: RS-485 + rear USB Host
Power supply: 24V AC/DC, 12V AC/DC
OR Power supply: 85V – 260V AC/DC
Options: no options
OR Options: IP 65 frame (rear USB Host port only)
OR Options: operating temperature -20°C ÷ +50°C including PCB conformal coating
OR Options: IP 65 frame + operating temperature -20°C ÷ +50°C including PCB conformal coating (rear USB Host port only)
