The SIMEX SRL-49 meter is designed for measuring of typical current or voltage signals.

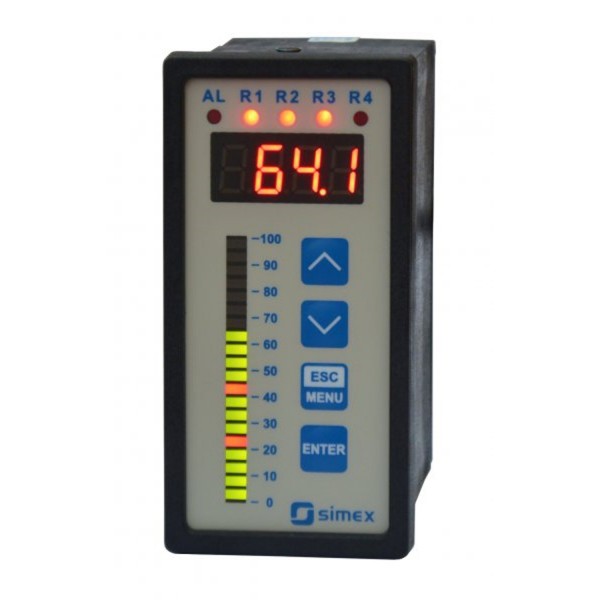

What makes the SRL-49 meter unique is that it boasts both a 4-digit LED display and a 20-point, two-colour bar graph covering the full measuring range.
Thanks to wide range of characteristic curves (linear, square, root, quadratic, user-defined and volume characteristic for cylindrical tanks) the meters are ideal for a huge variety of process control systems.

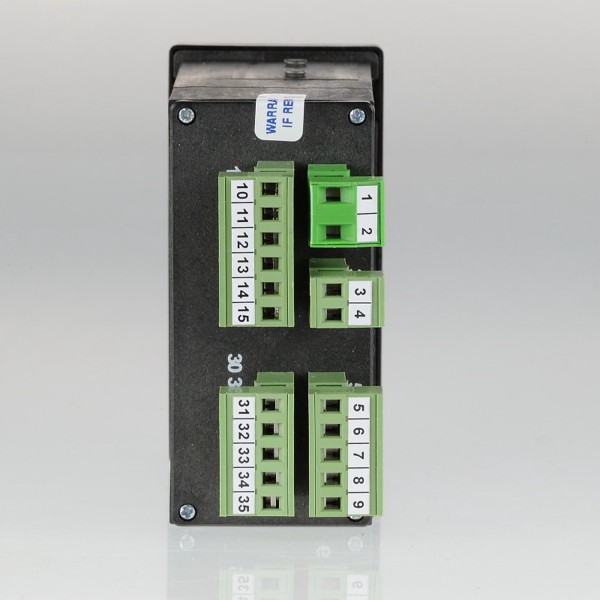

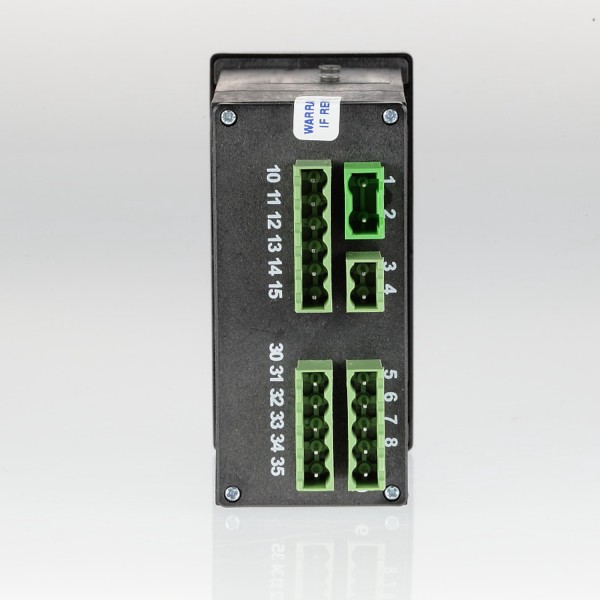

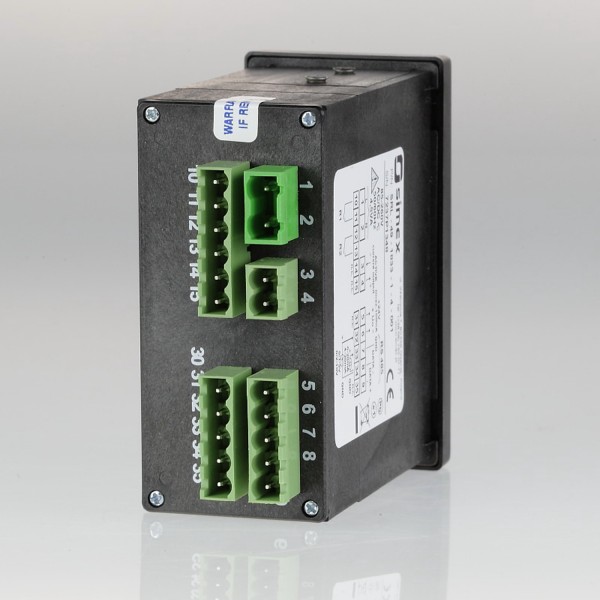

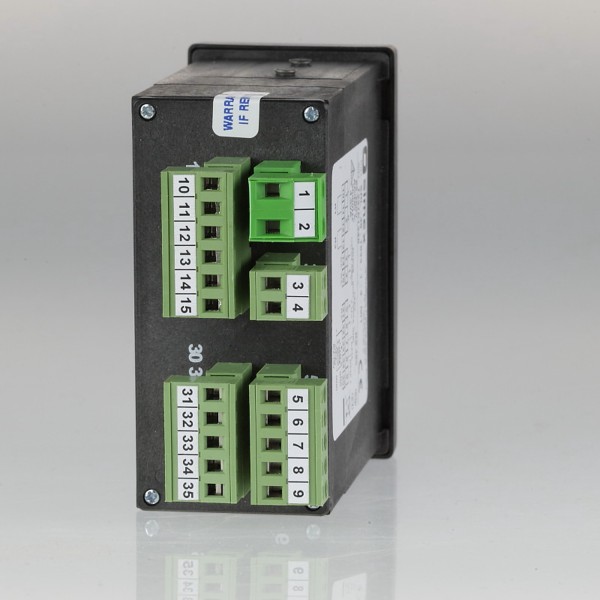

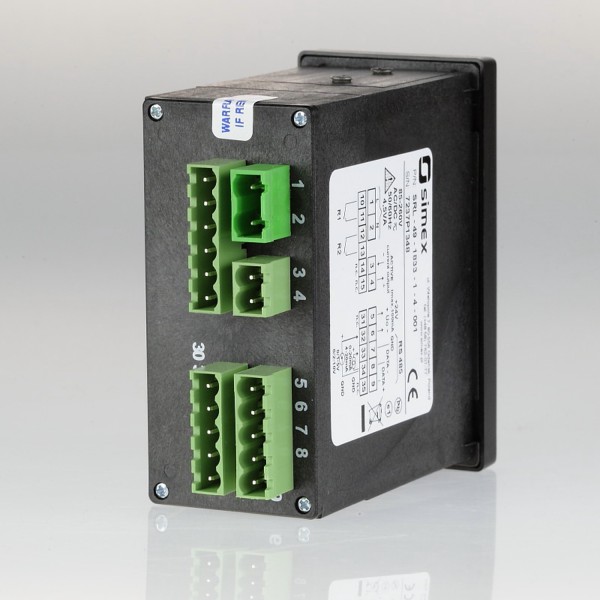

The 24V DC / 100 mA output is designed to supply measuring transducers. and the RS-485 port enables data transmission in production process monitoring systems.
The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values. Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
With its panel mount design, this meter will fit simply into any process system.
Case size (WxHxD) 48 x 96 x 100 mm
Digit height: 9mm
Features of the SRL-49
- process meter with bargraph
- inputs: 0/4-20 mA, 0/1-5V, 0/2-10V
- 0, 2 or 4 REL / OC outputs
- analogue output: active or passive power supply output: 24V DC
- RS-485 / Modbus RTU
- signal peak value detection
- free configuration software S-Config (download here)
