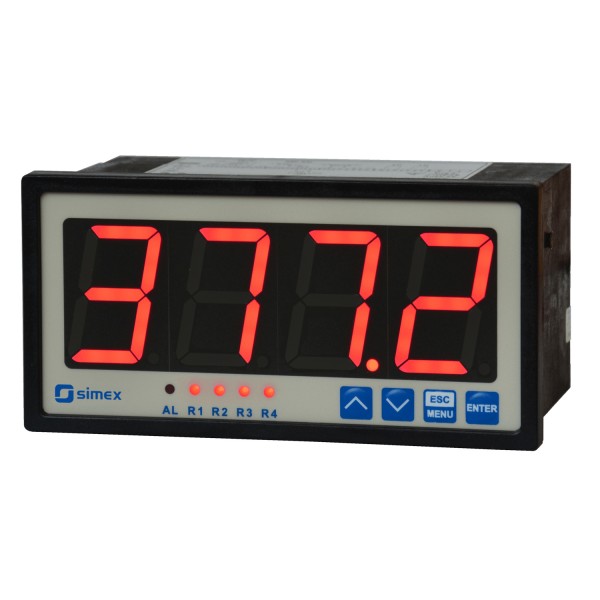

The SIMEX SRP-147 meter is designed for measuring of typical current or voltage signals.
As a main advantage, this device is equipped with a large, 38mm high LED display.
Thanks to wide range of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks) the meters may be used in various process control systems.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values. Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The meter can be configured using free S-Config software via the RS-485 communication port.
Features of the SRP-147

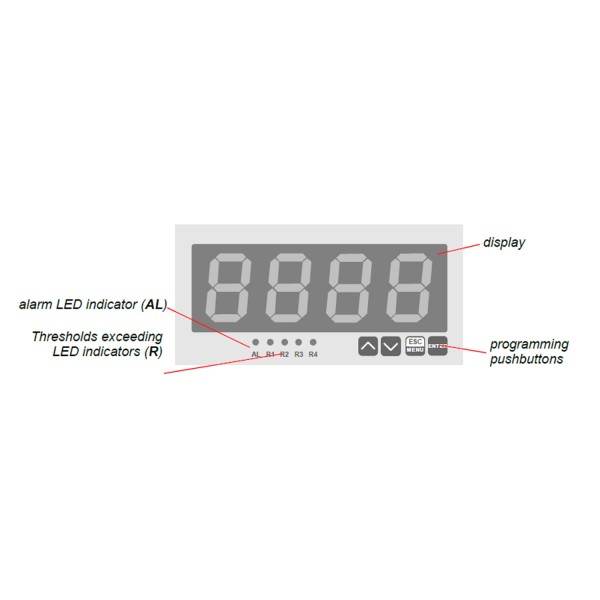

- process meter with a large 4 x 38 mm display
- inputs: 0/4-20 mA, 0/1-5V, 0/2-10V, 0-60/75/100/150 mV
- 0, 2 or 4 REL / OC outputs
- analogue output: active or passive power output: 24V DC
- RS-485 / Modbus RTU
- signal peak value detection
- free configuration software S-Config
