SRP-946
SRP-946 SRP-946 SRP-946 SRP-946

SRP-946

6x13mm Digit Process meter

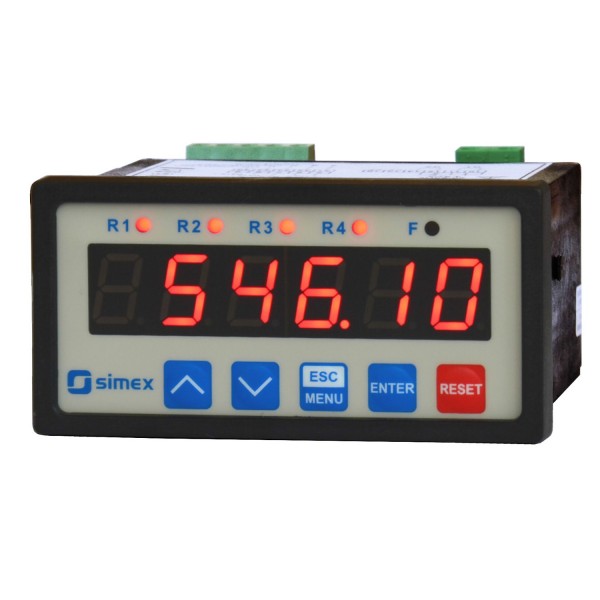

The SRP-946 meter is a 6-digit process meter designed for measuring of typical current or voltage signals.

Indicator/controller
96 x 48mm
6
13mm
Ammeter
Voltmeter

Types

Case Size (front)

Digits

Digit Height

Meter Type

,

Add to compare
Estimated Delivery 22nd June - 29th June
Categories: , Supplier:

Documentation & Downloads

Overview

The SRP-946 meter is a 6-digit process meter designed for measuring of typical current or voltage signals.

Thanks to wide range of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks) the meters may be used in various process control systems.

The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values. Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output. The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Features of the SRP-946

  • process meter with a large LED display
  • extended displayed values range up to 6 digits:-99999 ÷ 999999
  • inputs: 0/4-20 mA, 0/1-5V, 0/2-10V
  • 2 or 4 REL / OC outputs
  • analogue output: active or passive power supply output: 24V DC
  • RS-485 / Modbus RTU
  • signal peak value detection
  • free configuration software S-Config
