SRT-77

SRT-77

4x13mm Digit, Dual-Display, Panel-Mount Temperature meter

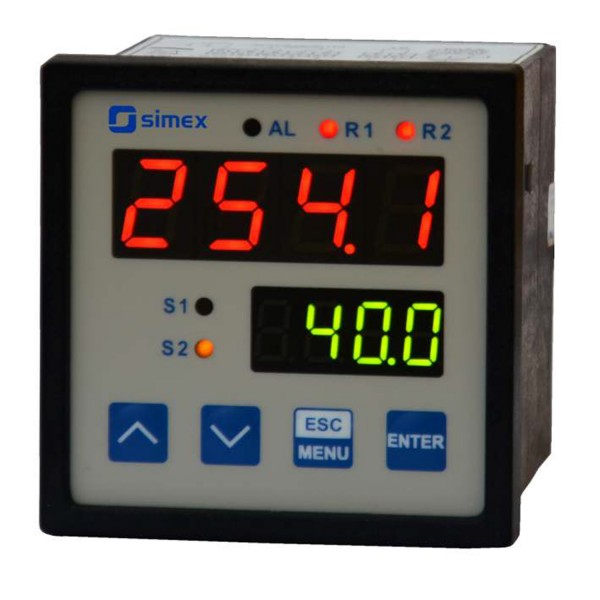

The Simex SRT-77 is a Dual-Display, Panel-Mount, Temperature Meter.

Indicator/controller
72x72mm
4
and 4
10mm
13mm
Temperature meter

Types

Case Size (front)

Digits

,

Digit Height

,

Meter Type

Add to compare
Estimated Delivery 22nd June - 29th June
Categories: , Supplier:

Documentation & Downloads

Overview

The Simex SRT-77 is a temperature meter with 2 displays.

The device has one input: thermoresistance (Pt100/500/1000) or thermocouple (K, S, J, T, N, R, B, E). Measurement is linearised by the polynomial characteristics.

For the case with thermocouple input, this device has additional measurement range (-10 ÷ 90 mV) mainly for diagnostics of measurement circuits.

The main advantage of the SRT-77 are two rows of display. The first one presents measuring value, second one – programmed values: max and min. 1 or 2 relay (or OC) outputs make it possible to control heating / cooling processes.

The RS-485 enables data transmission in production process monitoring systems.

Features of the SRT-77

  • temperature meter with 2 displays
  • input: thermoresistance or thermocouple
  • 0, 1 or 2 relay outputs (or OC type)
  • power output: 24V DC
  • RS-485 / Modbus RTU
