SW-BCD-94 Meter

SW-BCD-94

Universal Indicator with Serial and Parallel Input, 96 x 48 mm

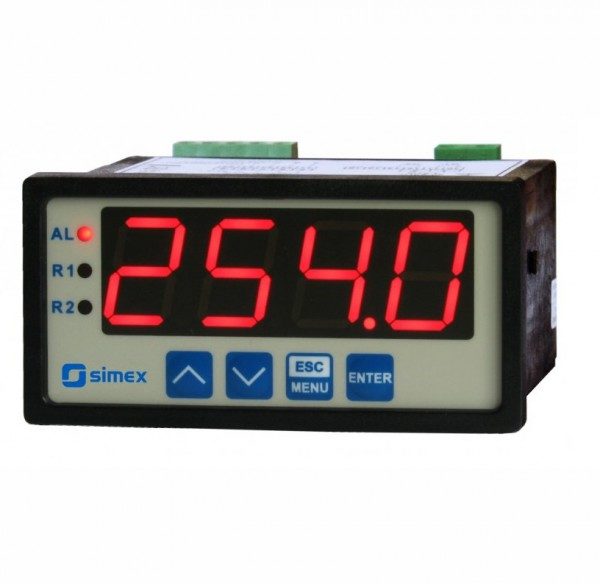

SW-BCD-94 universal indicator with serial and parallel input, 96 x 48 mm, 4 digits.

Indicator/controller
96 x 48mm
4
20mm
BCD meter

Types

Case Size (front)

Digits

Digit Height

Meter Type

Add to compare
Estimated Delivery 22nd June - 29th June
Categories: , Supplier:

Documentation & Downloads

Overview

SW-BCD-94 universal indicator with serial and parallel input, 96 x 48 mm, 4 digits.

The SW-BCD-94 indicator can be used as the indicator output for PLCs to display data in the binary, bcd or byte format or to show typical information transmitted over the RS-485 interface.

Depending on the parameter settings, the indicator can display:
– digits (0 – 9), with programmable decimal point,
– binary data (0 – 9, A – F), showing the statuses of e.g. the address lines, data lines, etc.
– various messages and text which can be created on the 7-segment digital displays.

The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Feature of the SW-BCD-94

  • universal indicator with serial and parallel input
  • 4 strobe inputs; 16 data inputs
  • RS-485 / Modbus RTU SLAVE
  • choice of number of strobe inputs and strobe signal type
  • choice of input and displayed data type
  • display brightness adjustable in 8 steps
  • Case dimensions: 96 x 48 x 100 mm
  • Display: LED, 4 x 20 mm, red (green – on request)
  • Protection class : IP 65 (front), available additional frame IP 65 for panel cut-out sealing; IP 20 (case and connection clips)
  • free configuration software S-Config
