SWS-N118

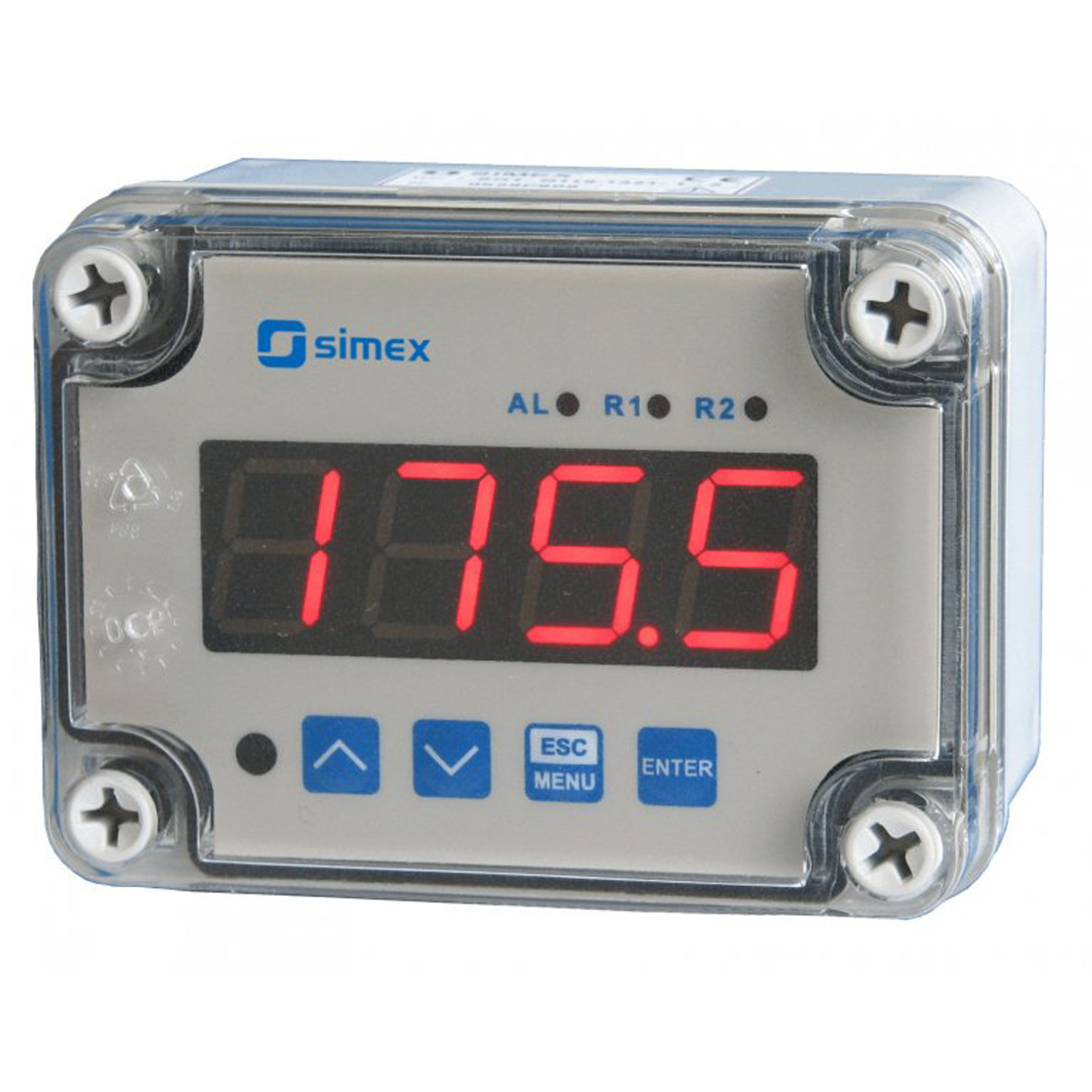

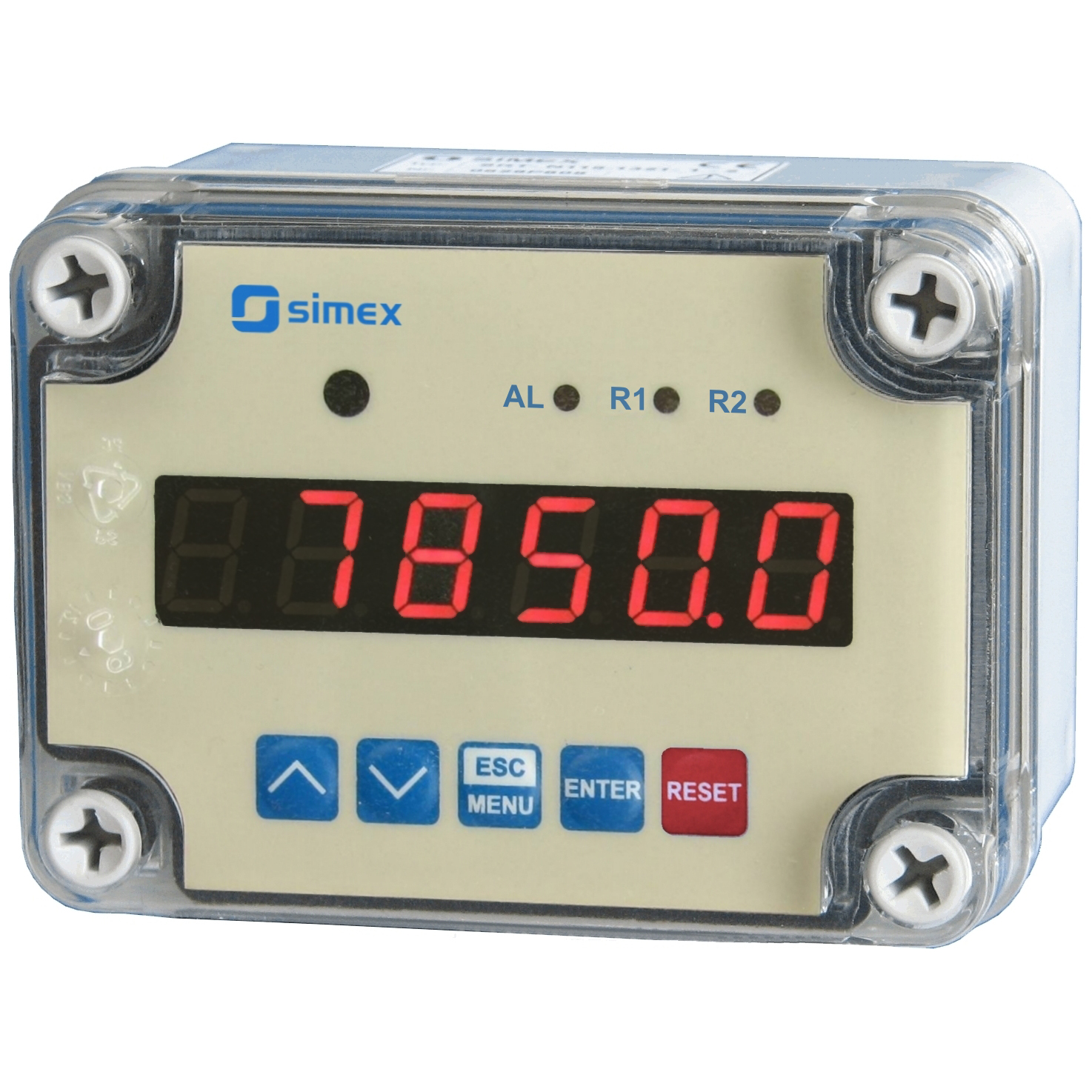

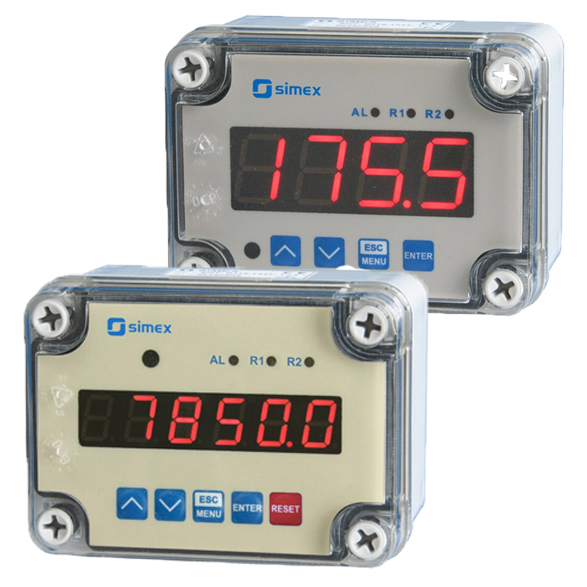

Wall-Mounted, IP67 4 or 6 Digit Serial Indicator

The Simex SWS-N118 is a serial indicator in wall-mounted IP 67 case.

Indicator / Controller
110x105mm
4
6
13mm
20mm
Serial data meter

Types

Case Size (front)

Digits

,

Digit Height

,

Meter Type

Add to compare
Estimated Delivery 10th December - 17th December
Categories: , Supplier:

Documentation & Downloads

Overview

The Simex SWS-N118 is a serial indicator in wall-mounted IP 67 case.

The SWS-N118 is a simple digital panel serial indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link.

The displayed value may be collected from other device (in MASTER mode).

The display brightness can be adjusted in 8 steps.

Device SWS-N118 is equipped with RS-485 / Modbus RTU communication interface and sensor supply output.

The device has 4 buttons being used for main presets programming. To get high protection level, the keyboard is mounted under transparent cover. To allow user to change presets without opening the cover, an IR sensor has been installed.

Features of the SWS-N118

  • wall-mounted IP 67 case serial indicator
  • power supply output: 24V DC
  • RS-485 / Modbus RTU
  • MASTER / SLAVE
  • display: 4 or 6 digits LED
  • display brightness adjustable in 8steps
  • transmission speed adjustable : 1200 ÷115200 bit/sek.

The remote controller (SIR-15) is not a part of the device and is available on request as an optional accessory.
