Overview

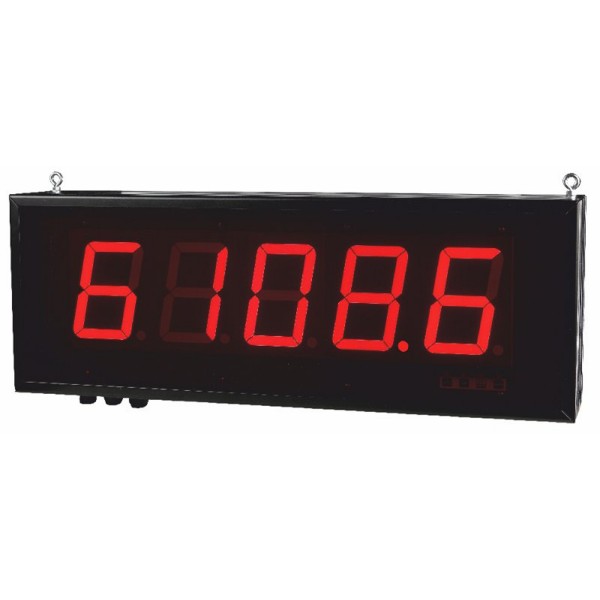

The Simex SWS-W510 is a large-size simple 5-digit digital panel indicator with a digit height of 100 mm.
The SWS-W510 is a simple digital panel indicator intended for displaying any numerical values in MASTER or SLAVE mode over the RS-485 serial interface link.
Or characters defined by user can be displayed in SLAVE mode only (sent from the master device) .
The device has 4 buttons on the front panel which are used for main presets programming. In order to get a higher level of protection, the buttons are mounted under a transparent cover.
An IR sensor is available to allow the user to change presets without opening the cover. The IR Remote Controller panel keyboard is equivalent to the device panel keyboard.
Modbus RTU protocol is used to communication with device. The transmission speed is user defined in 1200 ÷ 115200 baud range. It is possible to order device with other communication protocol using RS-485 interface (special order required).
Features of the SWS-W510
- large-size indicator
- RS-485 / Modbus RTU
- MASTER / SLAVE
- digit height: 100 mm
- 8-steps of brightness adjustment
Note, that the remote controller SIR-15 is available as an optional extra. Please let us know if required when placing order.
Examples of symbols/letters possible as SLAVE (for MASTER 01234567890-. only)
